Throttle Body Disassembly/Reassembly
Throttle Body Disassembly/Reassembly

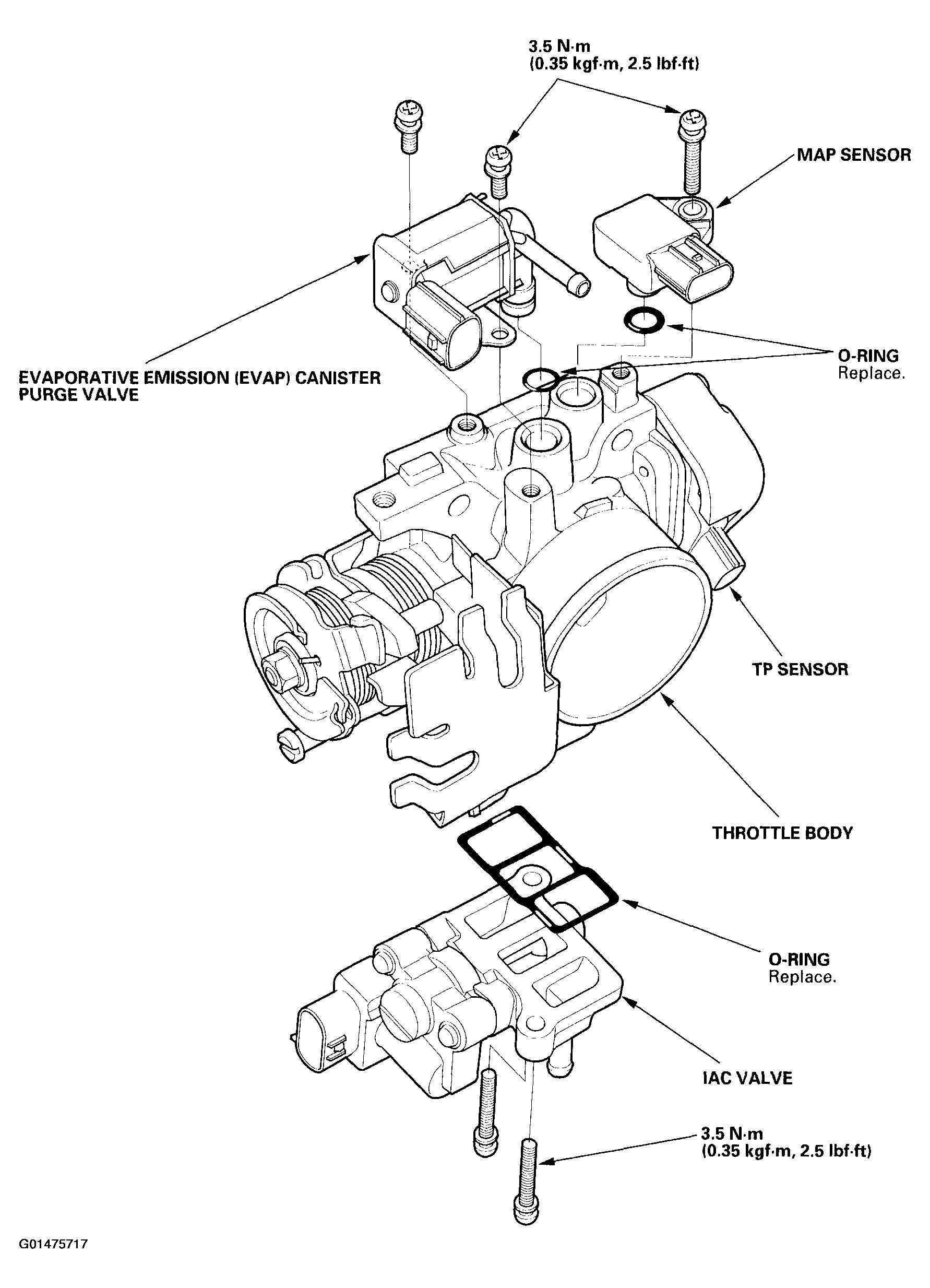

Fig 1: Identifying Throttle Body Disassembly/Reassembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
