Ignition Coil Removal/Installation

  1. Remove the engine cover.

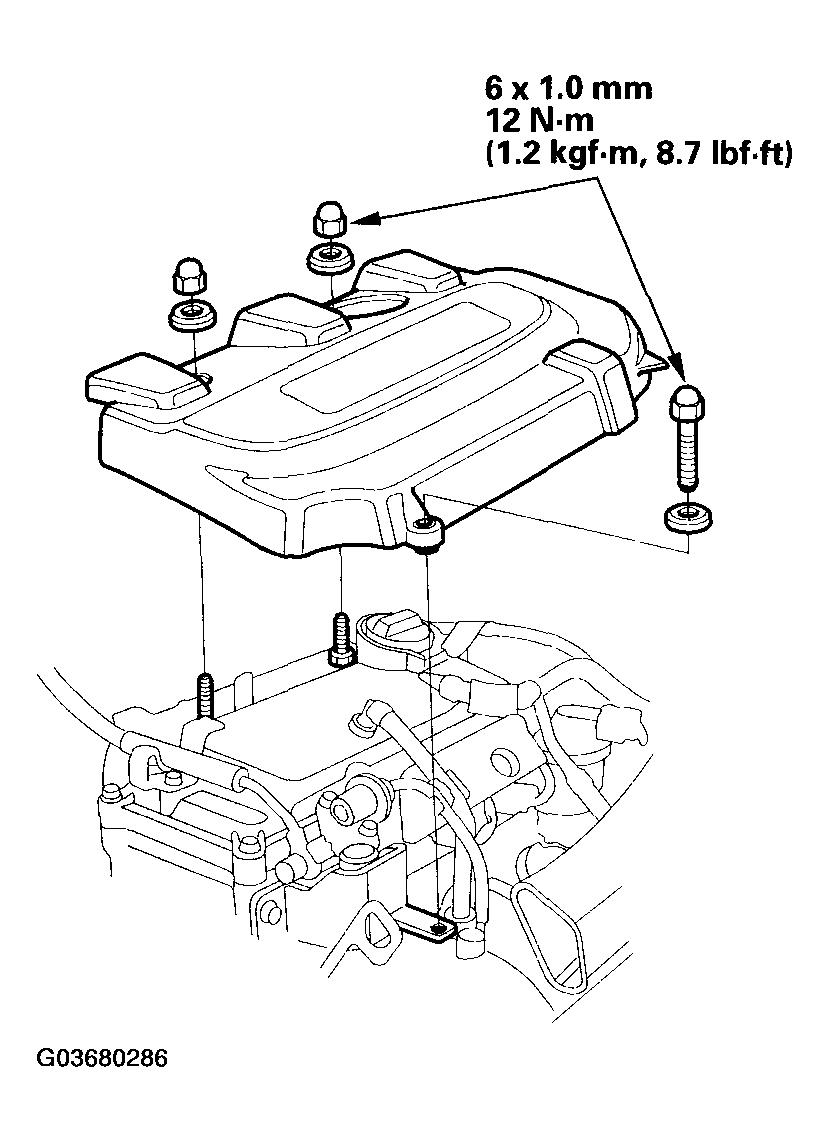

    Fig 1: Removing Engine Cover And Torque Specifications
    G03680286Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the ignition coil connectors.
  3. Remove the ignition coils.

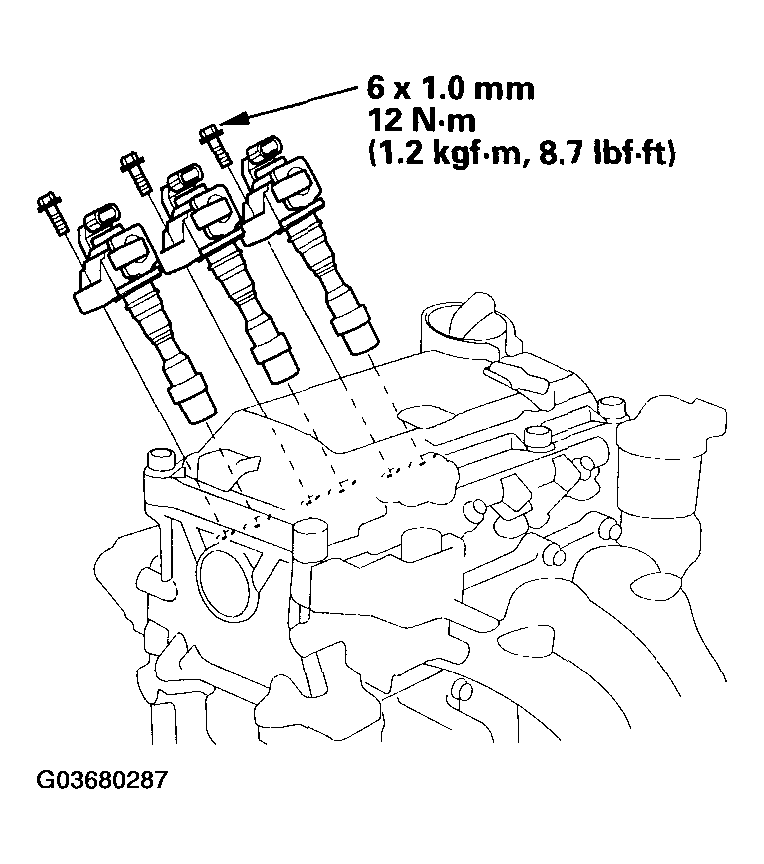

    Fig 2: Removing Ignition Coils And Torque Specifications
    G03680287Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the ignition coils in the reverse order of removal.
