Home >> Honda >> 2002 >> S2000 >> Repair and Diagnosis >> Electrical >> Horns >> Horn Test/Replacement

Horn Test/Replacement

  1. Remove the front bumper '00-03 models (see '00-03 MODELS ); '04-09 models (see '04-09 MODELS ).
  2. Open the hood ('02-09 models).

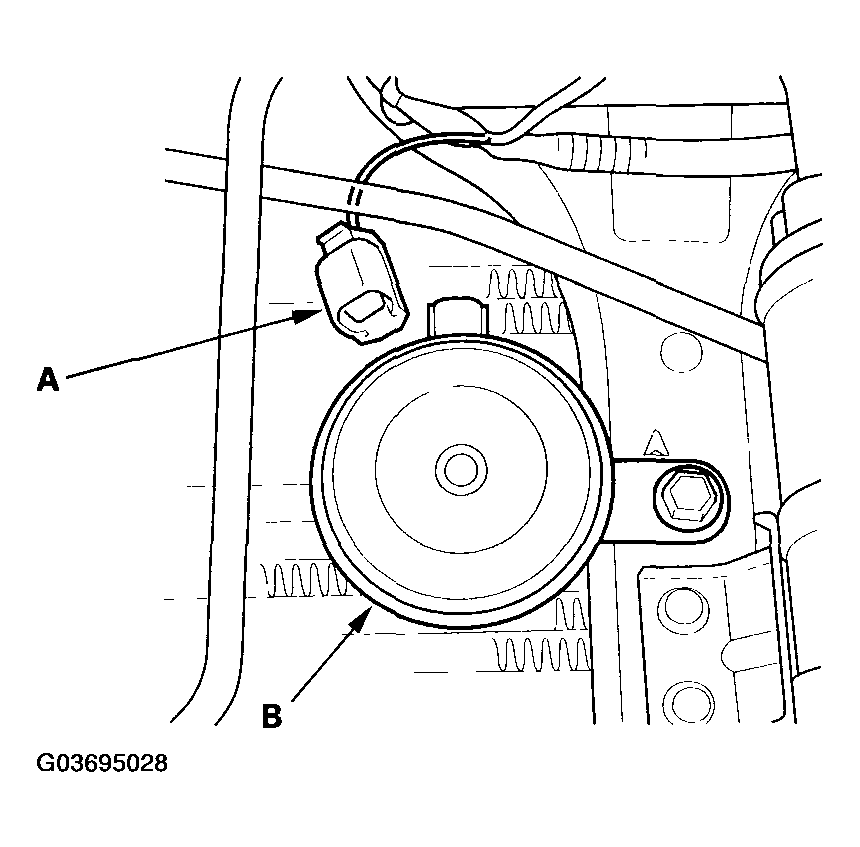

  3. Disconnect the 1P connector (A), and remove the horn (B).
    Fig 1: Identifying 1P Connector (A)
    G03695028Courtesy of AMERICAN HONDA MOTOR CO., INC.

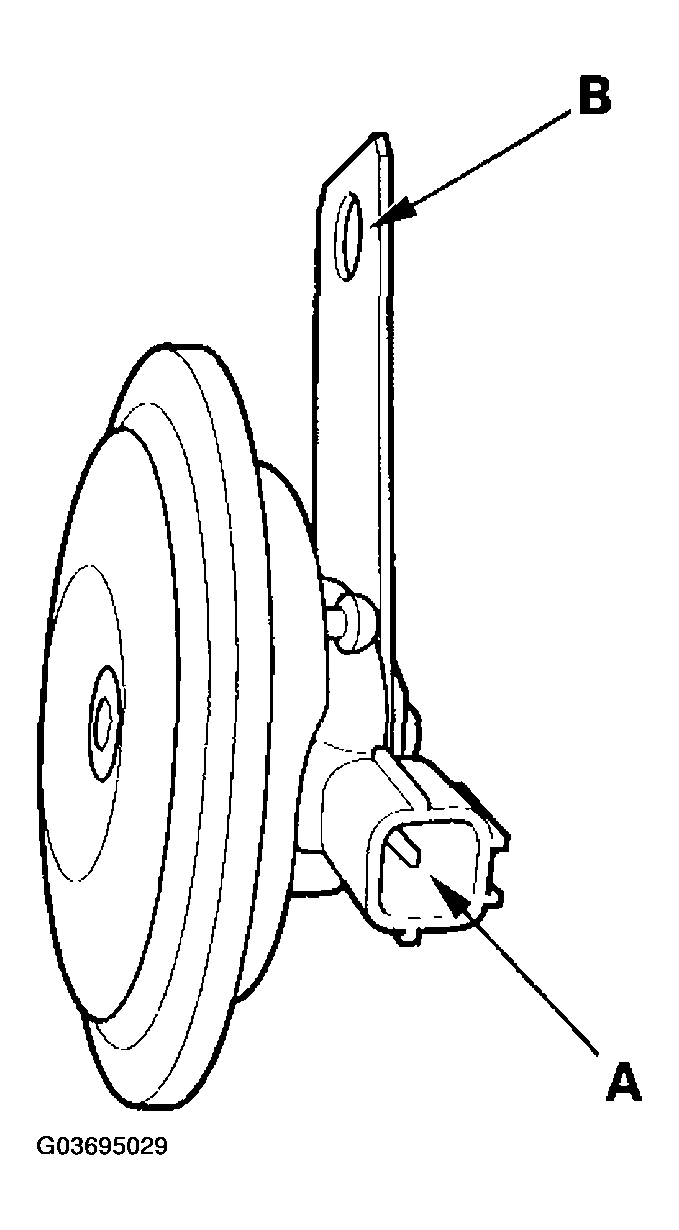

  4. Test the horn by connecting battery power to the terminal (A) and grounding to the bracket (B). The horn should sound.
    Fig 2: Connecting Battery Power To Terminal
    G03695029Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If it fails to sound, replace it.
