Starter Removal and Installation: Installation

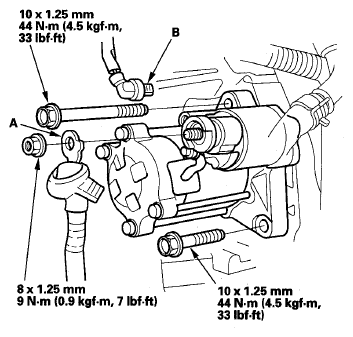

Install the starter, then connect the positive starter cable (A) and the BLK/WHT wire (B) to the starter. Make sure the crimped side of the ring terminal faces away from the starter when you connect it.

Fig 1: Positive Starter Cable And BLK/WHT Wire With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

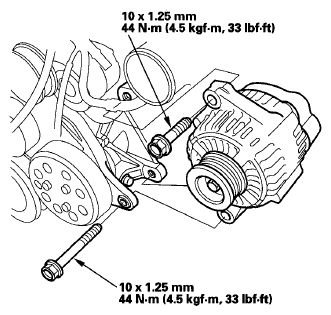

Install the alternator.

Fig 2: Alternator Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

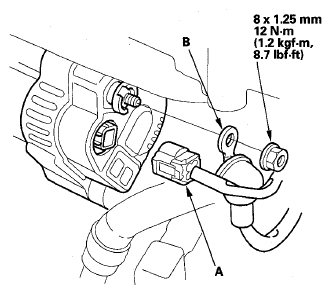

Connect the 4P connector (A) and the positive alternator cable (B) to the alternator.

Fig 3: 4P Connector And Positive Alternator Cable With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt (see DRIVE BELT INSPECTION ).

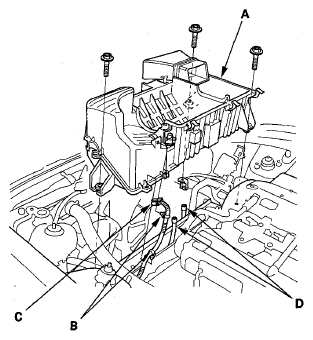

'00-05 models: Install the air cleaner housing (A), then install the harness clamps (B), connect the air control solenoid valve connector (C) and the vacuum hoses (D).

Fig 4: Identifying Air Cleaner Housing, Harness Clamps And Air Control Solenoid Valve Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

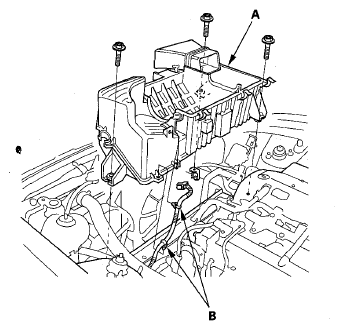

'06-09 models: Install the air cleaner housing (A), then install the IAT sensor harness clamps (B).

Fig 5: Identifying Air Cleaner Housing And IAT Sensor Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.

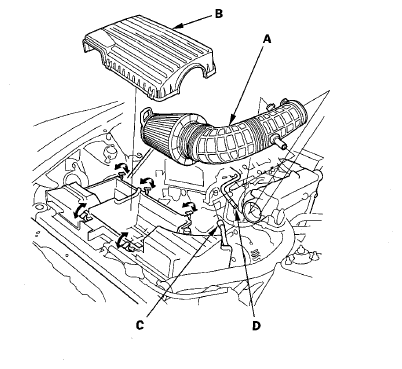

'00-05 models: Install the air cleaner assembly (A) and the air cleaner housing cover (B), then connect the air hose (C) and the breather pipe (D).

Fig 6: Identifying Air Cleaner Assembly, Air Cleaner Housing Cover And Air Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

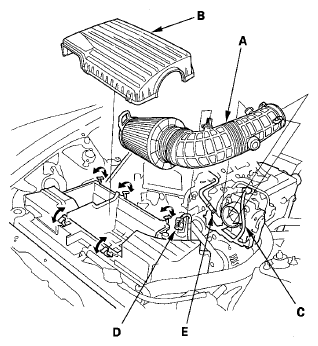

'06-09 models: Install the air cleaner assembly (A) and the air cleaner housing cover (B), then install the MAP sensor harness (C) to the holder, connect the IAT sensor connector (D) and the breather pipe (E).

Fig 7: Identifying Air Cleaner Assembly, Air Cleaner Housing Cover And MAP Sensor Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Start the engine to make sure the starter works properly.
'00-05 models: Do the engine control module (ECM) idle learn procedure (see ECM IDLE LEARN PROCEDURE ).
