Air Cleaner Housing Disassembly/Reassembly

  1. Drain the coolant. (see appropriate COOLING SYSTEM (Mechanical) article ).
    Fig 1: Draining Coolant
    G01511775Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner housing

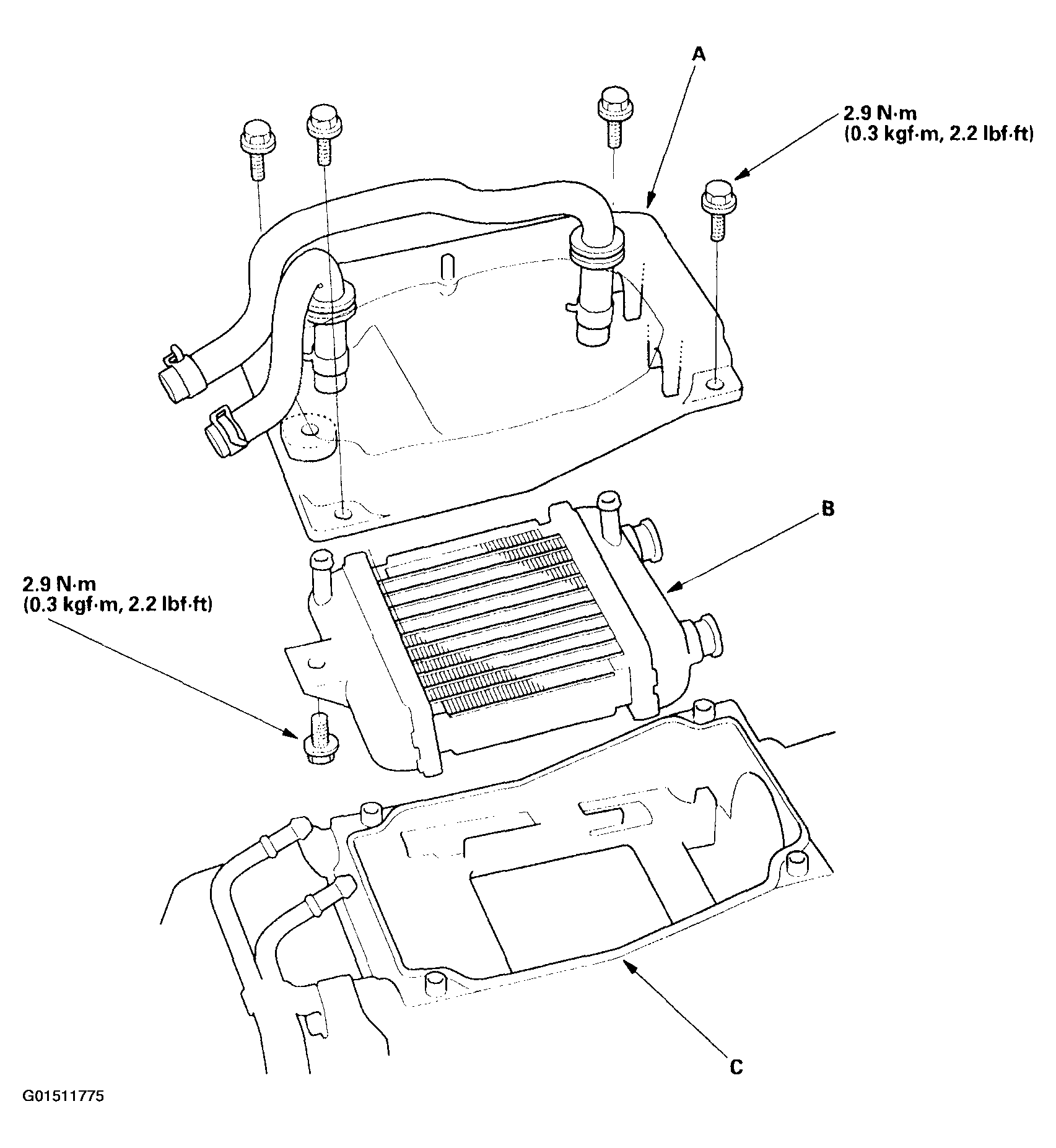

  3. Remove the cover (A) and the radiator (B) from the air cleaner housing (C).
  4. Install the parts in the reverse order of removal.
  5. Fill the radiator with coolant. (see appropriate COOLING SYSTEM (Mechanical) article ).
