EVAP Canister Replacement

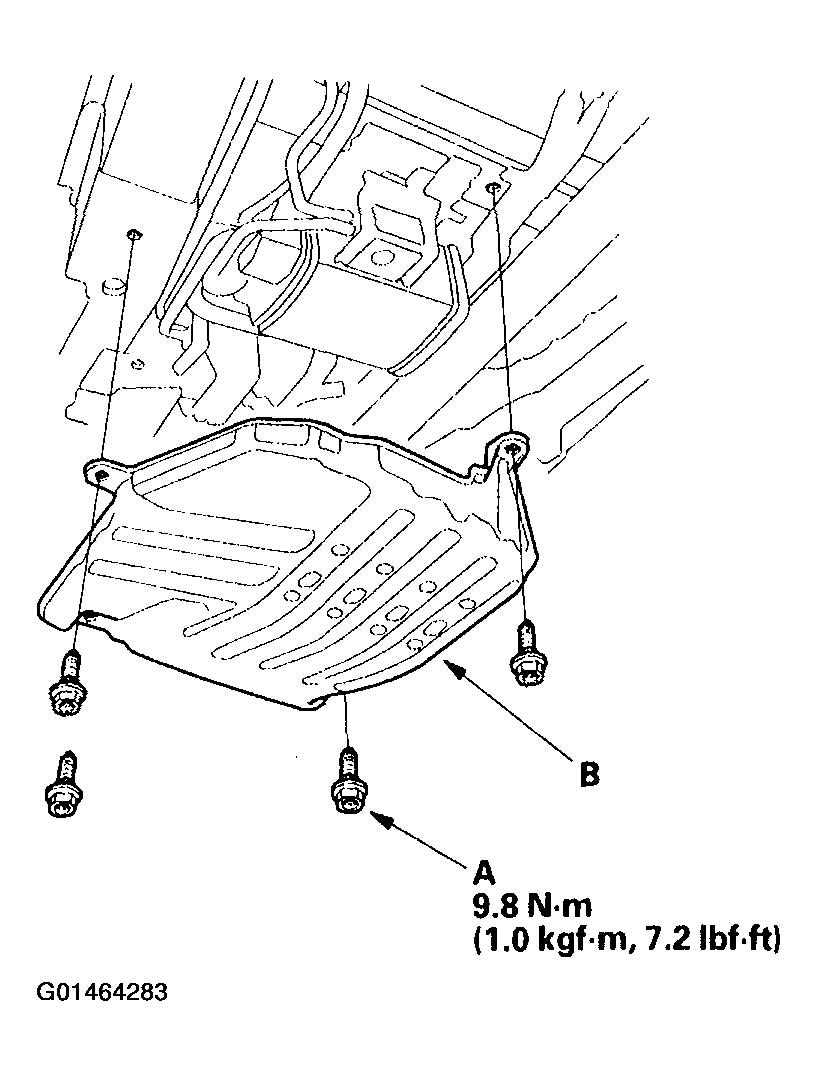

  1. Remove the bolts (A) and the EVAP canister cover (B).
    Fig 1: Removing The EVAP Canister Cover
    G01464283Courtesy of AMERICAN HONDA MOTOR CO., INC.

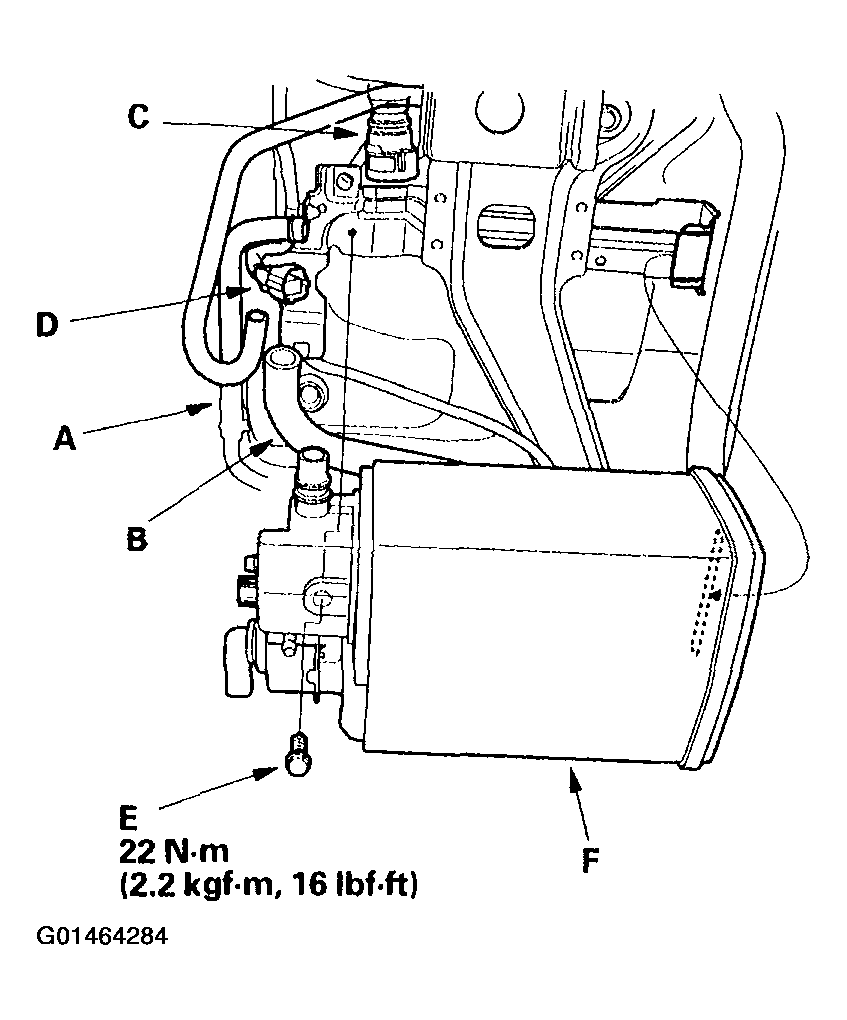

  2. Remove the vacuum hose (A), vent hose (B), quick connect fitting (C), and EVAP canister vent shut valve 2P connector (D).
    Fig 2: Removing The Vacuum Hose, Vent Hose, Quick Connect Fitting & EVAP Canister Vent Shut Valve 2P Connector
    G01464284Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt (E).
  4. Remove the EVAP canister (F).
  5. Install the parts in the reverse order of removal.
