Component Location Index
Component Location Index

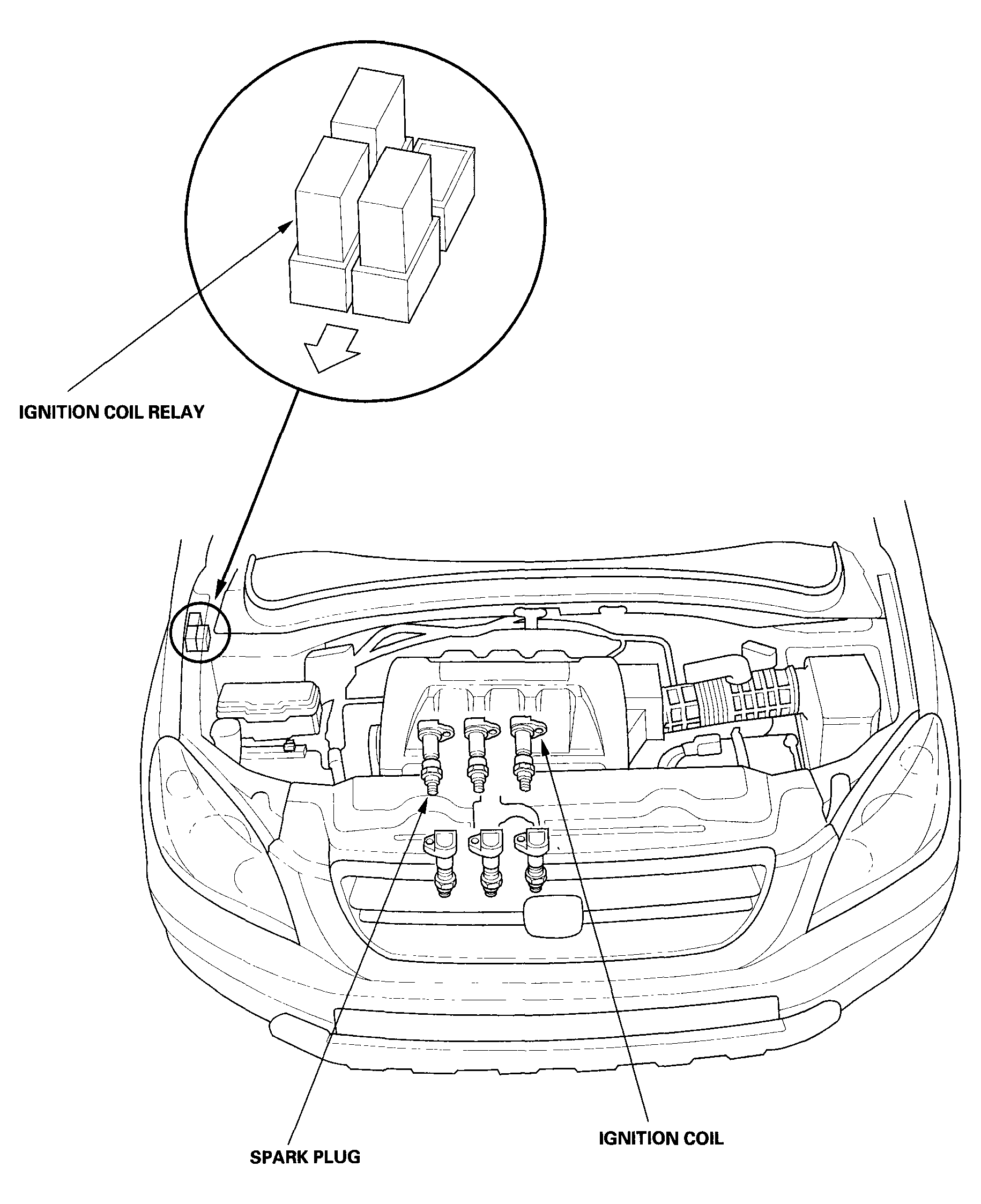

Fig 1: Identifying Ignition Coil, Ignition Coil Relay And Spark Plug
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
