VTEC Oil Pressure Switch Replacement

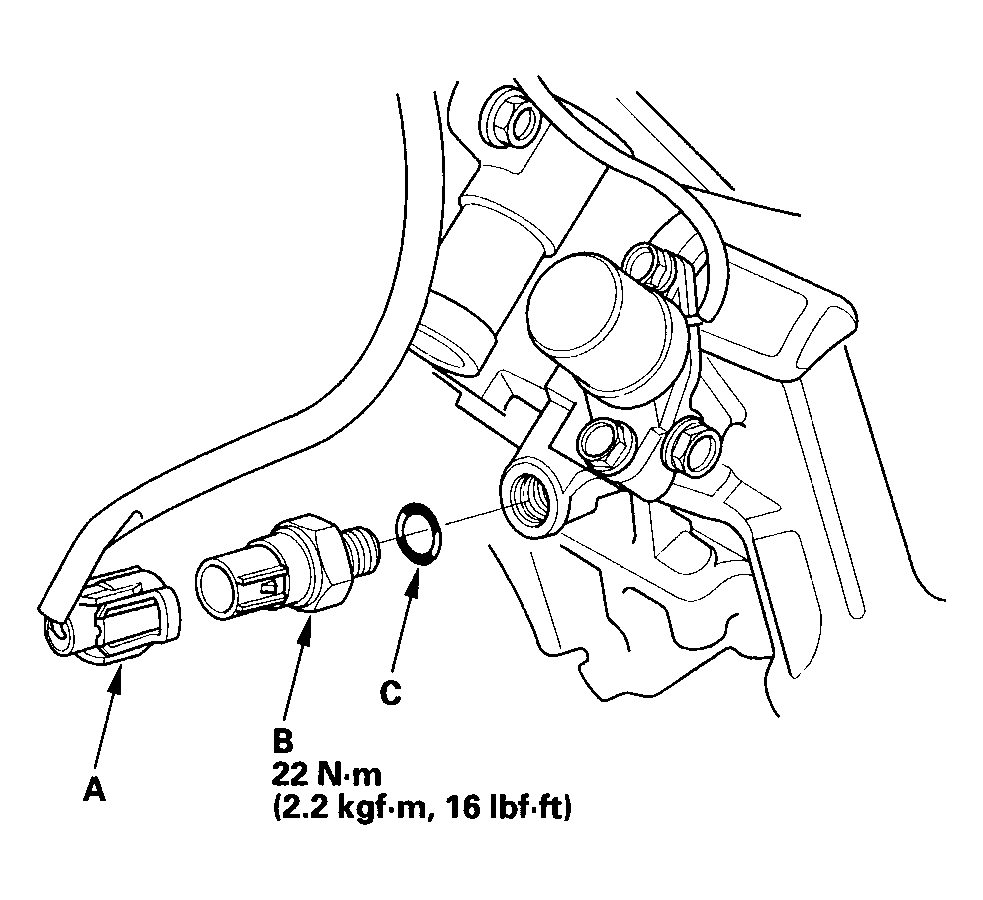

- Disconnect the VTEC oil pressure switch 2P connector (A), then remove the VTEC oil pressure switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the switch in the reverse order of removal with a new O-ring (C).
