Home >> Honda >> 2006 >> CR-V SE >> Repair and Diagnosis >> Engine Performance >> System >> VTEC/VTC >> Component Location Index

Component Location Index

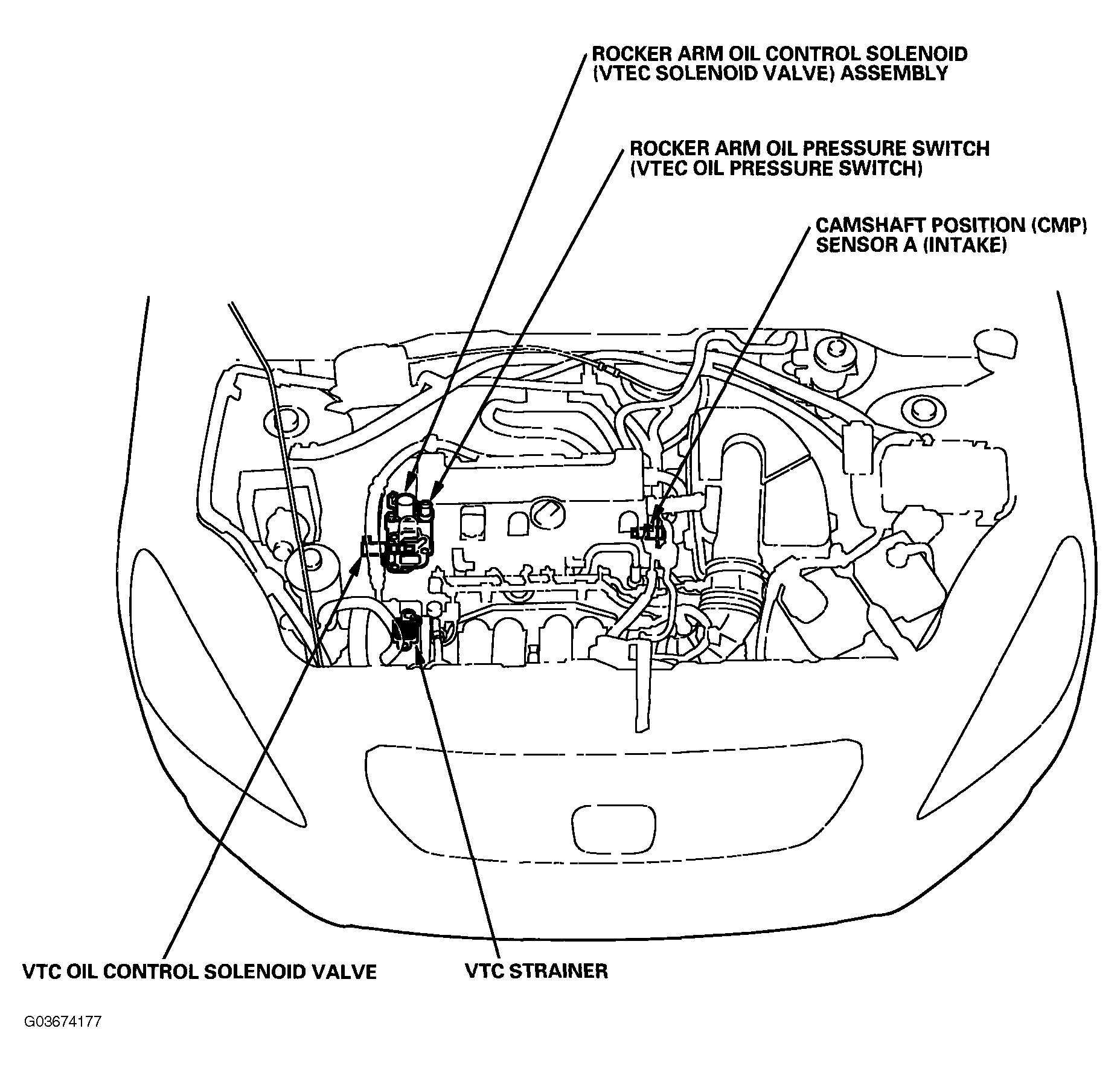

Fig 1: Identifying VTEC/VTC Component
G03674177Courtesy of AMERICAN HONDA MOTOR CO., INC.
