Home >> Honda >> 2007 >> Ridgeline RT >> Repair and Diagnosis >> Engine Performance >> System >> Intake Air System >> Accelerator Pedal Replacement

Accelerator Pedal Replacement

  1. Remove the throttle cable (A) from the accelerator pedal (B).

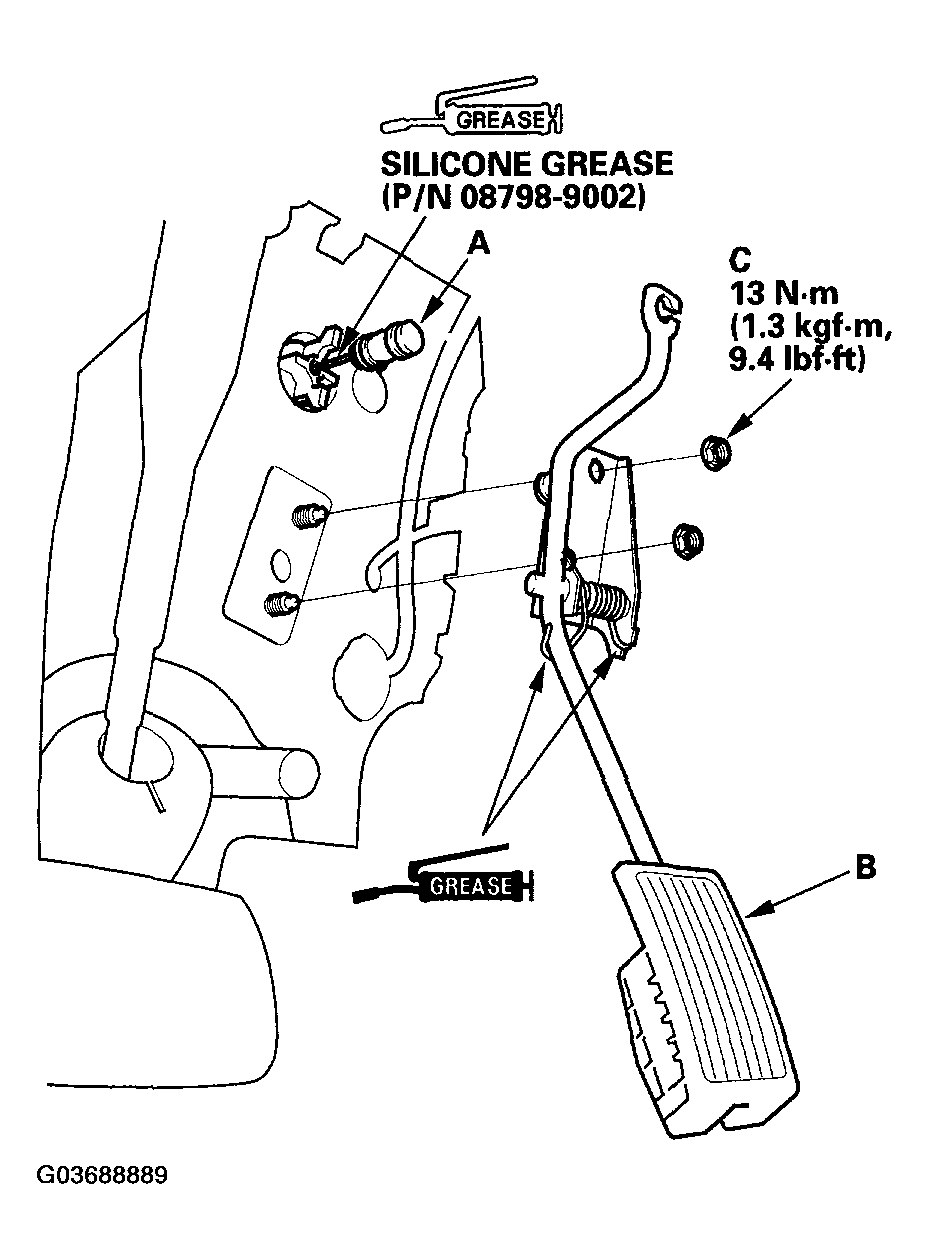

    Fig 1: Removing Throttle Cable From Accelerator Pedal With Torque Specifications
    G03688889Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nuts (C) and the accelerator pedal.
  3. Install in the reverse order of removal.
