Home >> Honda >> 2007 >> S2000 >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P0685: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Malfunction >> Notes

DTC P0685: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Malfunction: Notes

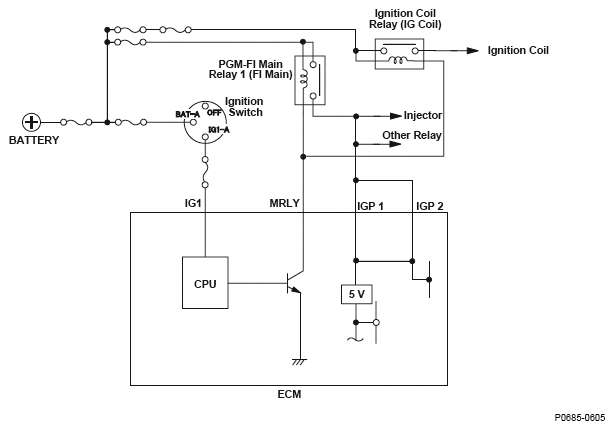

Fig 1: Engine Control Module (ECM) Power Control Circuit/Internal Circuit Diagram

G04818020
