Home >> Honda >> 2007 >> S2000 >> Repair and Diagnosis >> Engine Performance >> System >> Intake Air System >> Accelerator Pedal Replacement

Accelerator Pedal Replacement

  1. Remove the throttle cable (A) from the accelerator pedal (B).
  2. Remove the nuts (C) and the accelerator pedal.

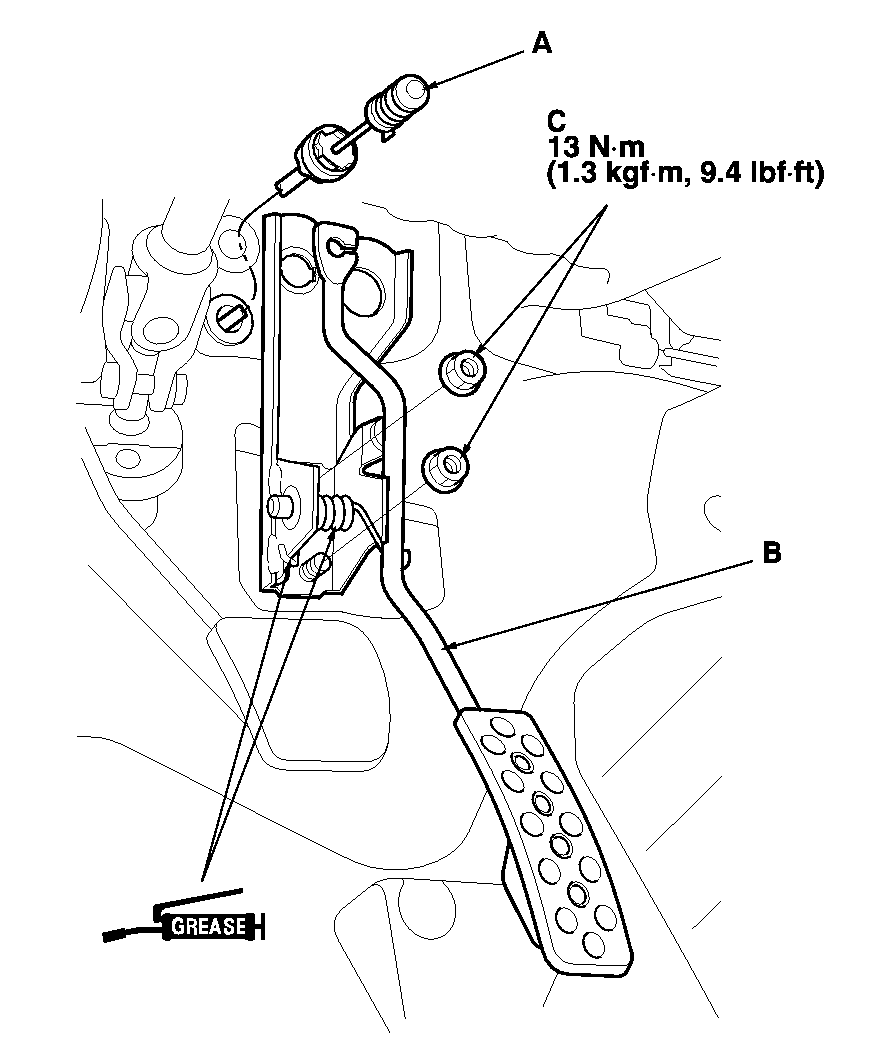

    3. Fig 1: Identifying Throttle Cable & Accelerator Pedal
    G00455407Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal.
