APP Sensor Replacement

  1. Remove the throttle cable cover (see THROTTLE CABLE REMOVAL/INSTALLATION ).
  2. Remove the throttle cable (see THROTTLE CABLE REMOVAL/INSTALLATION ).
  3. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).

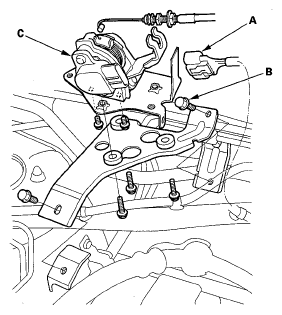

    Fig 1: Identifying Accelerator Pedal Position (APP) Sensor 6P Connector & Bolts
    G05449161Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (B), and the APP sensor (C).
  5. Install the parts in the reverse order of removal.
