Component Location Index

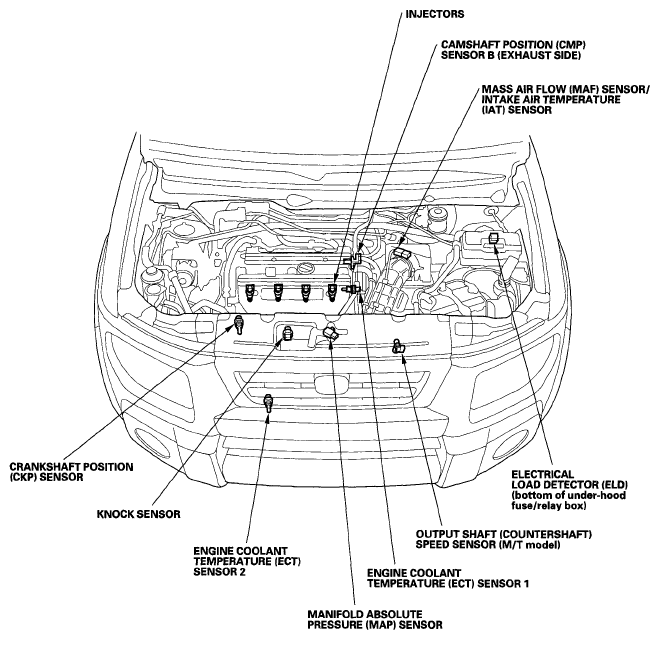

Fig 1: Identifying PGM-FI System Component Location (1 Of 3)
G06267336Courtesy of AMERICAN HONDA MOTOR CO., INC.

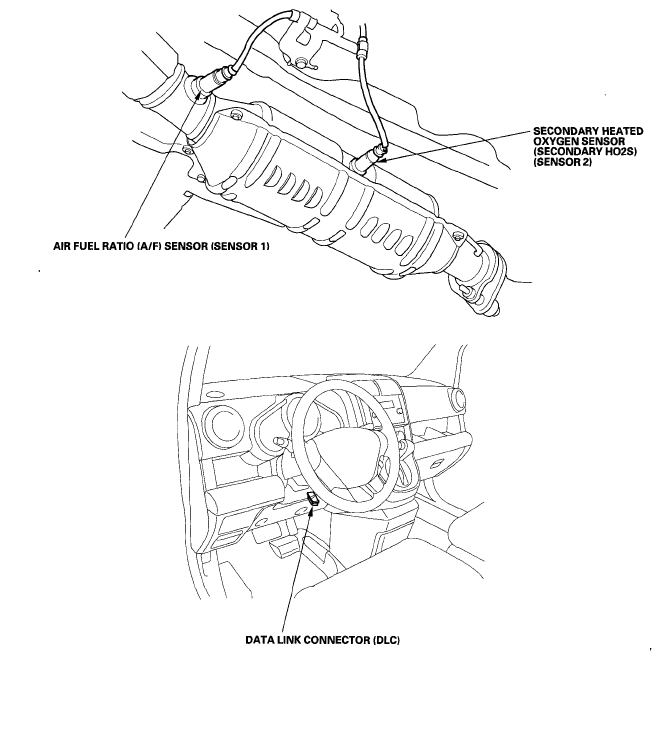

Fig 2: Identifying PGM-FI System Component Location (2 Of 3)
G06267337Courtesy of AMERICAN HONDA MOTOR CO., INC.

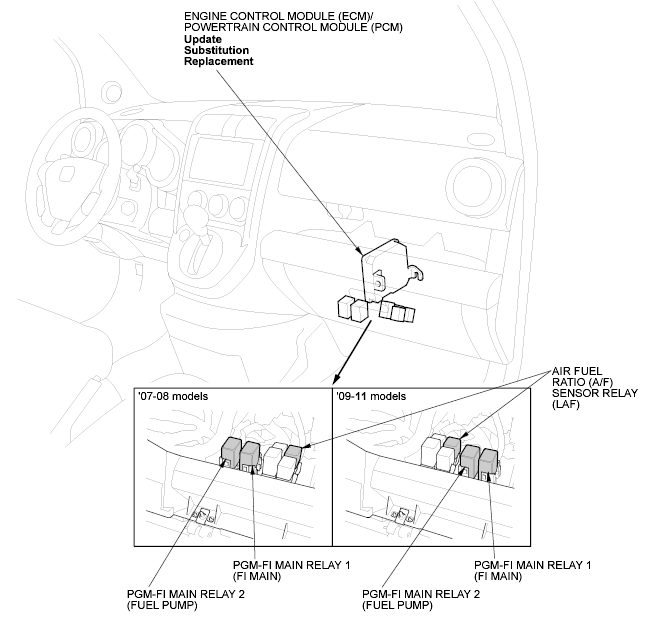

Fig 3: Identifying PGM-FI System Component Location (3 Of 3)
G00491760Courtesy of AMERICAN HONDA MOTOR CO., INC.
