Throttle Actuator Control Module Replacement

  1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), the side kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Push the tab (A), and disconnect the throttle actuator control module connector (B).

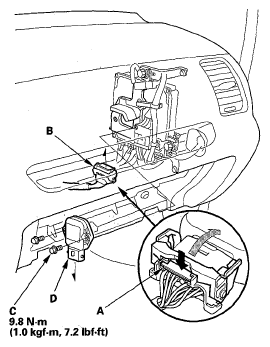

    Fig 1: Throttle Actuator Control Module And Connector With Torque Specification
    G05454730Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (C), and the throttle actuator control module (D).
  4. Install the parts in the reverse order of removal.
