Air Cleaner Element Inspection/Replacement

  1. Remove the air cleaner housing cover (A).

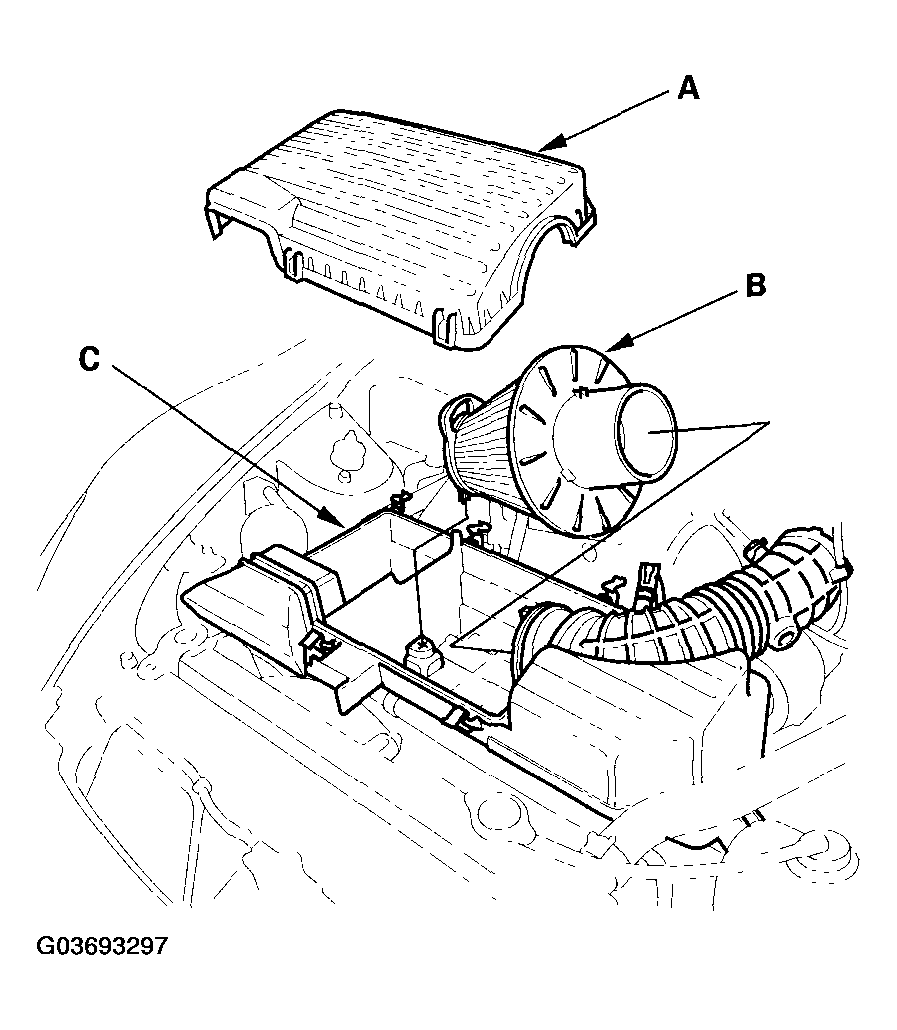

    Fig 1: Identifying Air Cleaner Housing Cover
    G03693297Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner element (B) from the air cleaner housing (C).
  3. Check the air cleaner element for damage or clogging. If it is damaged or clogged, replace it.
    NOTE: Do not use compressed air to clean the air cleaner element.
  4. Clean and remove any debris from inside the air cleaner housing.
  5. Install the parts in the reverse order of removal.
