Circuit Diagram

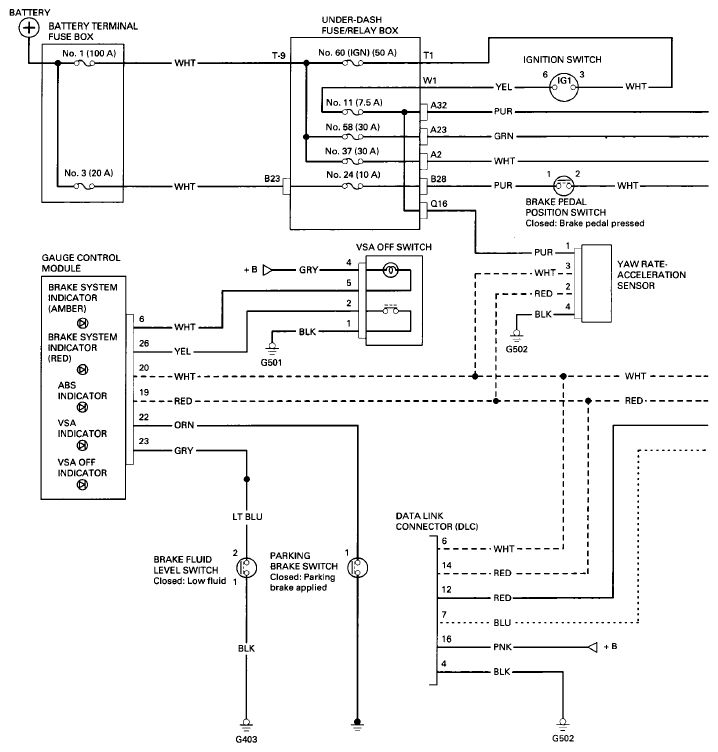

Fig 1: VSA System Circuit Diagram (1 Of 3)

G08093824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

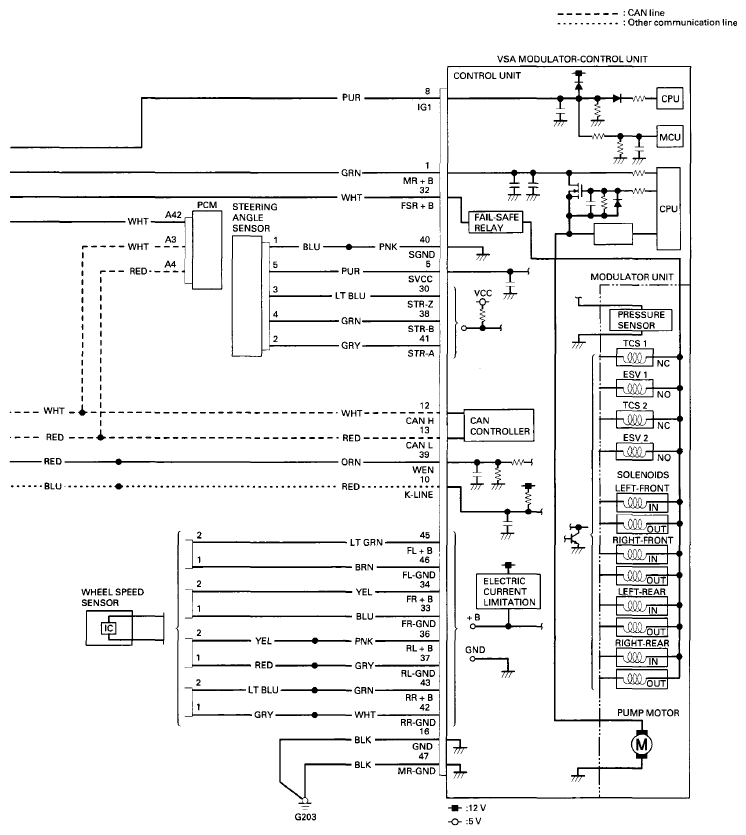

Fig 2: VSA System Circuit Diagram (2 Of 3)

G08093825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

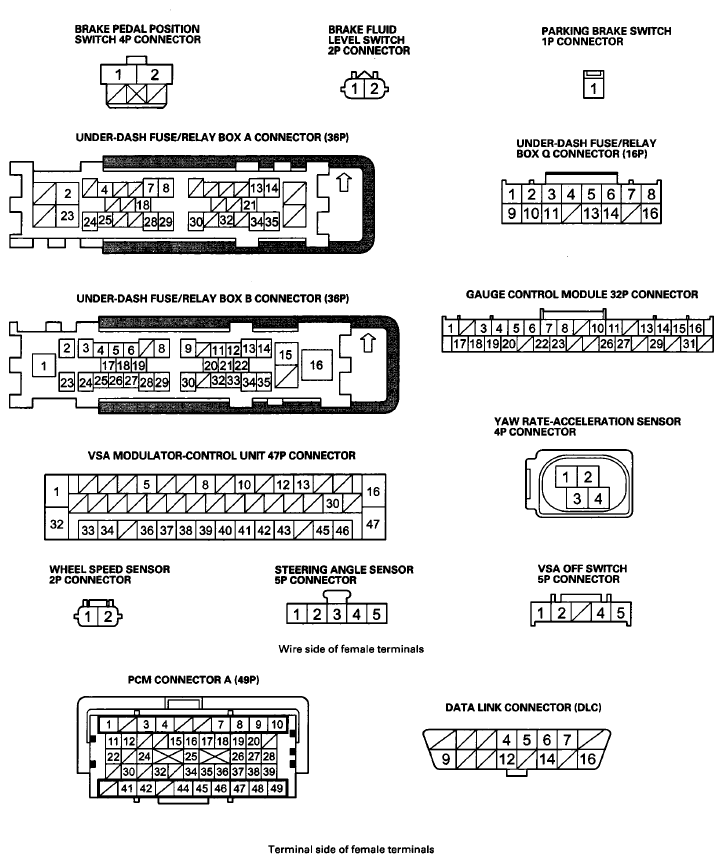

Fig 3: VSA System Circuit Diagram (3 Of 3)

G08093826

Courtesy of AMERICAN HONDA MOTOR CO., INC.
