Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0).
  2. Remove the front wheels.
  3. Remove the grommet (A), then disconnect the wheel speed sensor connector (B).

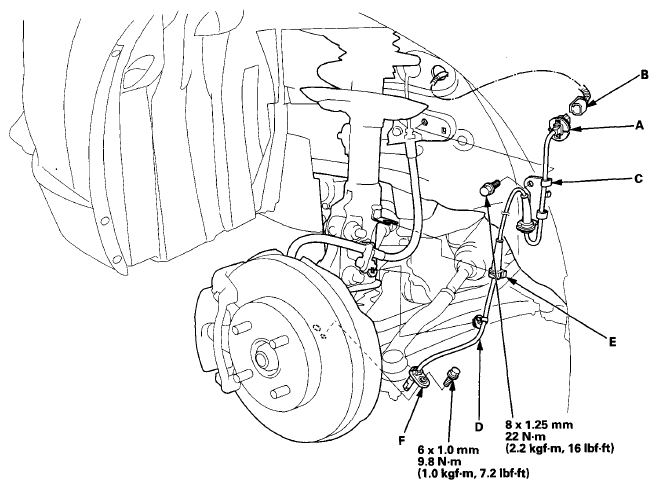

    Fig 1: Grommet, Wheel Speed Sensor Connector, Bolt, Bracket, Clip And Wire Guide Rubber With Torque Specifications
    G08093876Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolt and the bracket (C), the clip (D), and the wire guide rubber (E).
  5. Remove the bolt and the wheel speed sensor (F).
  6. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
