Starter Removal and Installation: Installation

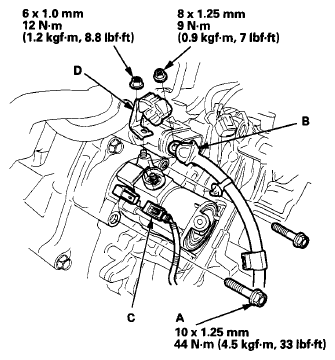

- Install the starter, then tighten the starter mounting bolts (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Connect the positive starter cable (B) and the harness connector (C) to the S terminal, then install the heater hose bracket (D). Make sure the crimped side of the ring terminal is facing out.
- Install the air cleaner (see
AIR CLEANER REMOVAL/INSTALLATION
).
- Do the 12 volt battery terminal reconnection procedure (see
USING THE GR8 BATTERY DIAGNOSTIC STATION
).
