Home >> Honda >> 2012 >> Insight Base >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P0351: Intake Side Ignition Coil Power Circuit Malfunction >> Notes

DTC P0351: Intake Side Ignition Coil Power Circuit Malfunction: Notes

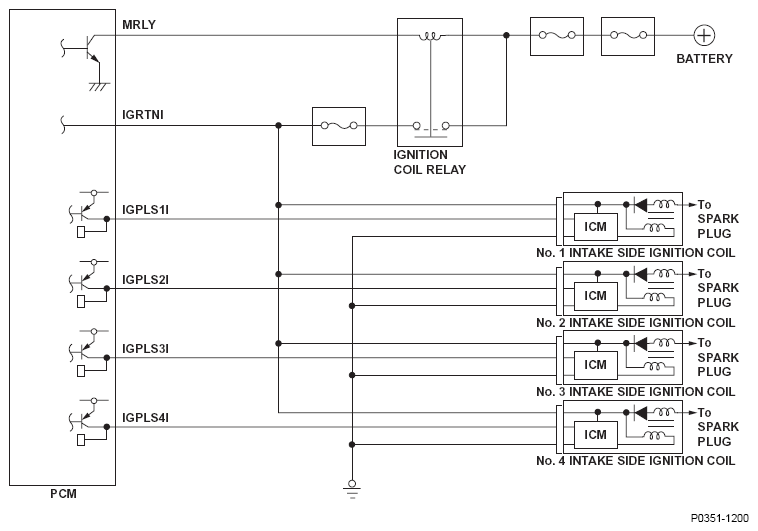

Fig 1: Intake Side Ignition Coil Power - Circuit Diagram

G08568453
