DTC P1454: Fuel Tank Pressure (FTP) Sensor Range/Performance Problem: Notes

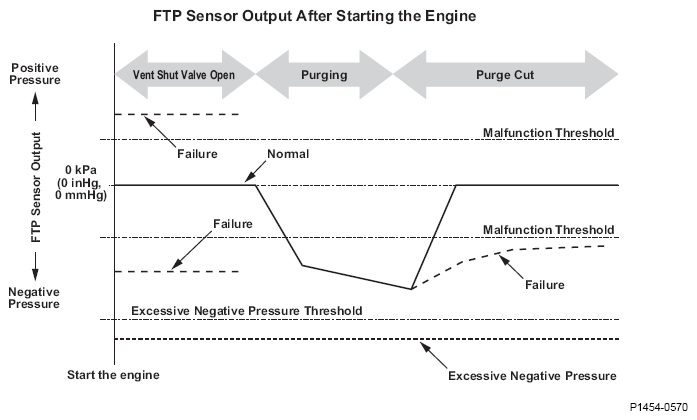

Fig 1: Fuel Tank Pressure Sensor Output Pressure Graph (After Starting Engine)

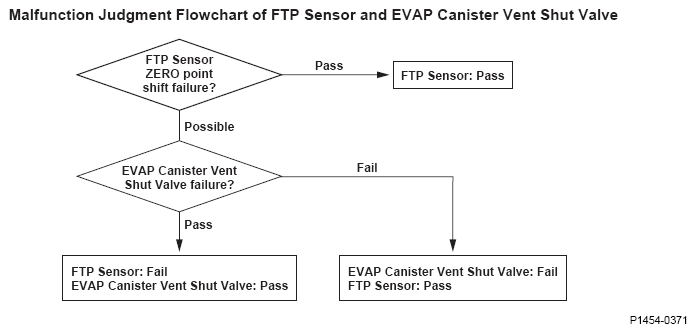

Fig 2: Fuel Tank Pressure Sensor And EVAP Canister Vent Shut Valve Judgment Flowchart
