Component Location Index

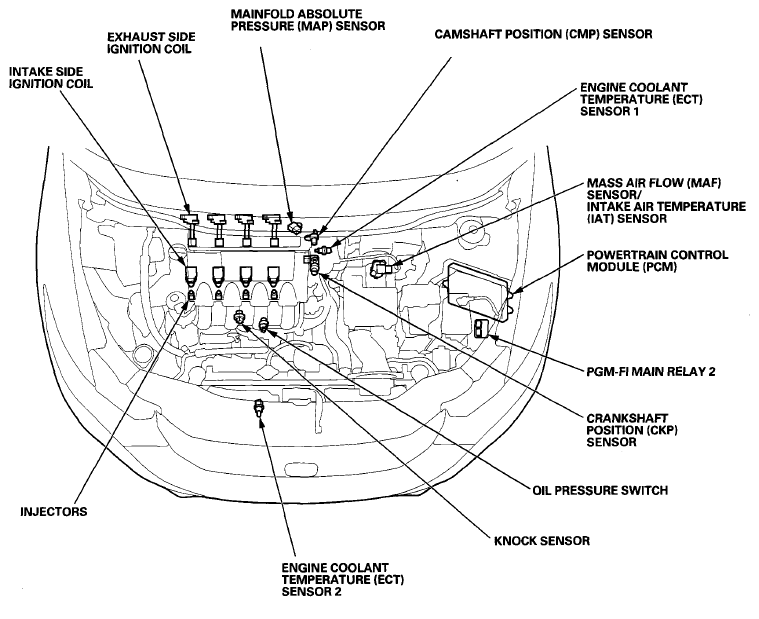

Fig 1: PGM-FI System Components Locations (1 Of 3)
G08092209Courtesy of AMERICAN HONDA MOTOR CO., INC.

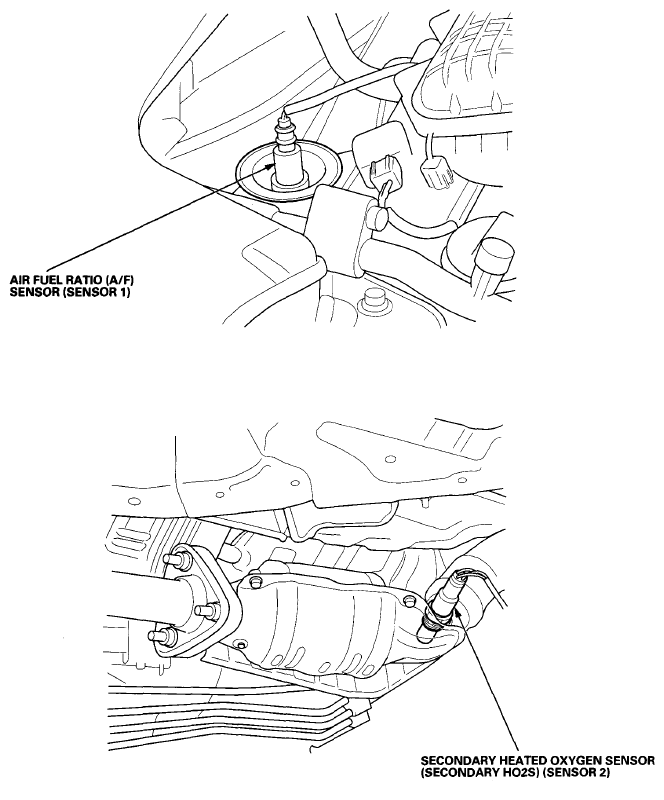

Fig 2: PGM-FI System Components Locations (2 Of 3)
G08092210Courtesy of AMERICAN HONDA MOTOR CO., INC.

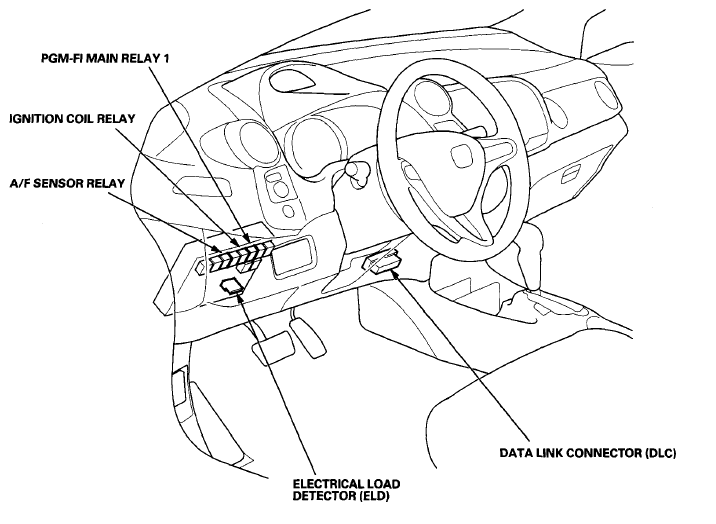

Fig 3: PGM-FI System Components Locations (3 Of 3)
G08092211Courtesy of AMERICAN HONDA MOTOR CO., INC.
