Knock Sensor Replacement

  1. Remove the dipstick.
  2. Disconnect the knock sensor 2P connector (A).

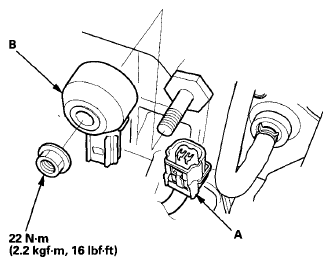

    Fig 1: Lnock Sensor, 2P Connector And Mounting Bolts With Torque Specifications
    G08092385Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the knock sensor (B).
  4. Install the parts in the reverse order of removal.
