MAP Sensor Replacement

  1. Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).
  2. Disconnect the MAP sensor 3P connector (A).

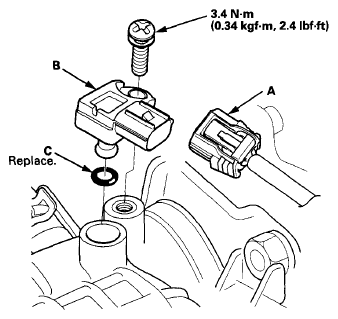

    Fig 1: MAP Sensor, 3P Connector, O-Ring And Mounting Bolts With Torque Specifications
    G08092386Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the MAP sensor (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
