FTP Sensor Replacement

  1. Remove the EVAP canister cover (see step  2 ).
  2. Disconnect FTP sensor 3P connector (A), and loosen the bolt (B).

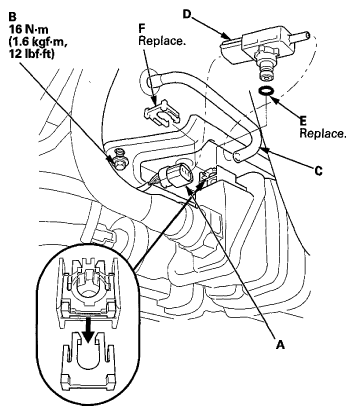

    Fig 1: FTP Sensor 3P Connector, Hose, O-Ring And Bolt With Torque Specifications
    G06964054Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hose (C), and remove the FTP sensor (D).
  4. Install the parts in the reverse order of removal with a new O-ring (E) and a new retainer (F).
