PCV Valve Inspection

  1. Check the PCV valve (A), the hoses (B), the pipe (C), and the connections for leaks or restrictions.
    Fig 1: Identifying PCV Valve, Hoses And Pipes
    G08092612Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. At idle, make sure there is a clicking sound from the PCV valve when the hose between the PCV valve and intake manifold is lightly pinched (A) with your fingers or pliers.

    If there is no clicking sound, check the PCV valve washer for cracks or damage. If the washer is OK, replace the PCV valve and recheck.

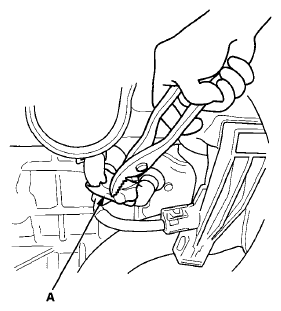

    Fig 2: Pressing (Pinching) Hose Between PCV Valve And Intake Manifold
    G08092613Courtesy of AMERICAN HONDA MOTOR CO., INC.
