Air Cleaner Removal/Installation

  1. Remove the clips (A).

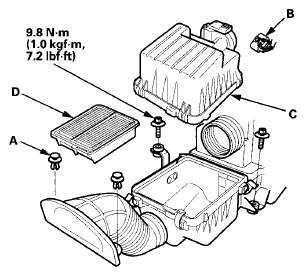

    Fig 1: Clips, MAF Sensor/IAT Sensor Connector, Air Cleaner Housing Cover And Elements With Torque Specifications
    G08092580Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the MAF sensor/IAT sensor connector (B), then remove the air cleaner housing cover (C), and the air cleaner element (D).
    NOTE: Be careful not to damage the MAF sensor/IAT sensor on the air cleaner housing cover.
  3. Remove the air cleaner housing (A).
    Fig 2: Identifying Air Cleaner Housing
    G08092581Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal.
