PCV Valve Replacement

  1. Remove the engine cover (see REMOVAL ).
  2. Remove the bolt (A).
    NOTE: Do not spill oil on the hot exhaust manifold.

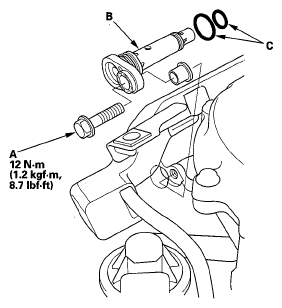

    Fig 1: PCV Valve And Bolts With Torque Specifications
    G05964763Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the PCV valve (B).
  4. Install the parts in the reverse order of removal.
NOTE:
  • When installing a new PCV valve, make sure the O-rings (C) are in place.
  • When installing a used PCV valve, use new O-rings.
