Component Location Index

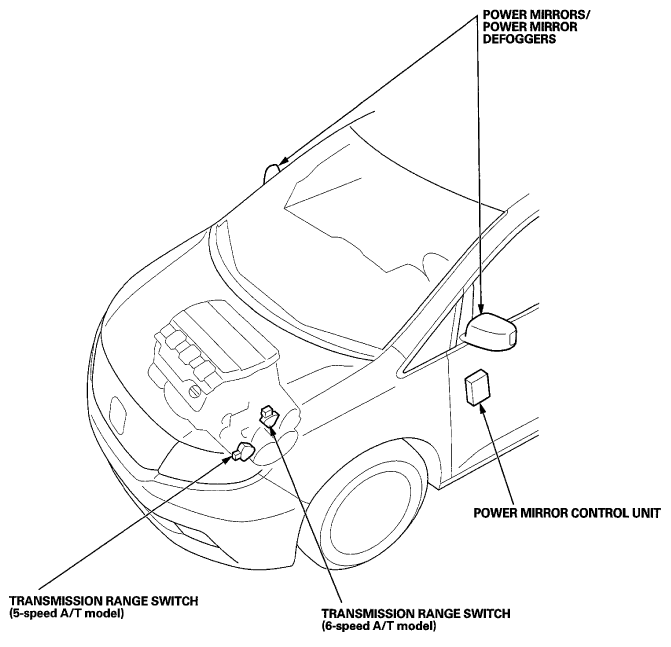

Fig 1: Identifying Driver Position Memory System Components Location (1 Of 4)
G06970134Courtesy of AMERICAN HONDA MOTOR CO., INC.

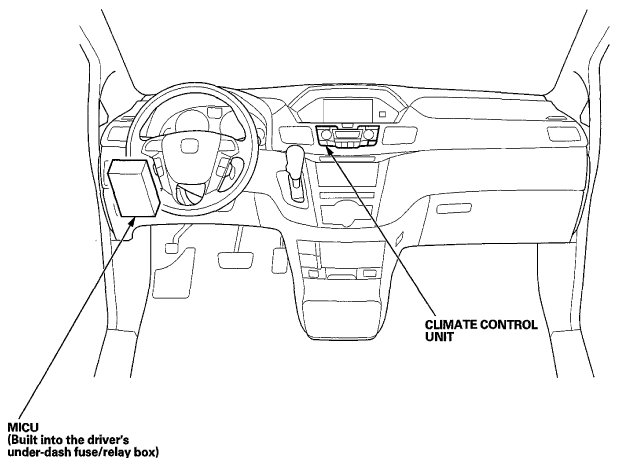

Fig 2: Identifying Driver Position Memory System Components Location (2 Of 4)
G06970135Courtesy of AMERICAN HONDA MOTOR CO., INC.

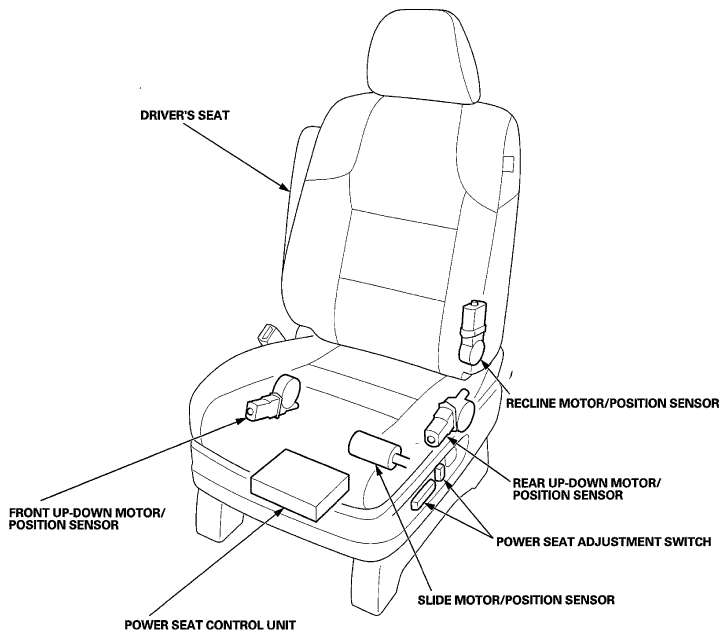

Fig 3: Identifying Driver Position Memory System Components Location (3 Of 4)
G06970136Courtesy of AMERICAN HONDA MOTOR CO., INC.

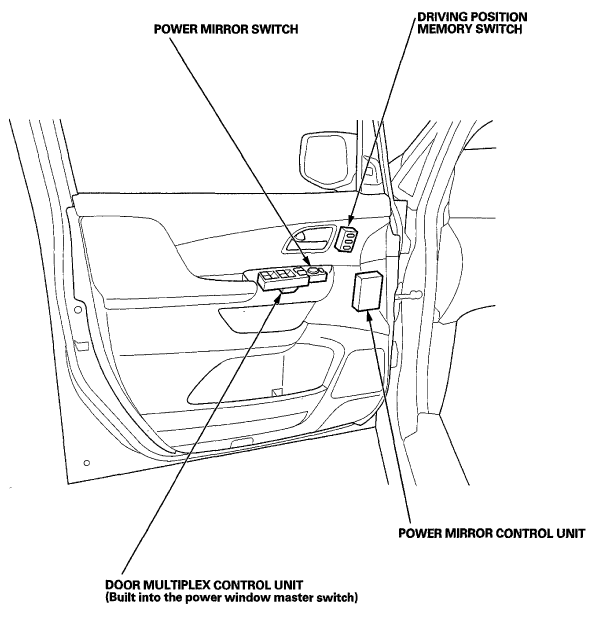

Fig 4: Identifying Driver Position Memory System Components Location (4 Of 4)
G06970137Courtesy of AMERICAN HONDA MOTOR CO., INC.
