Active Control Engine Mount (ACM) System
>>
Circuit Diagram
Circuit Diagram

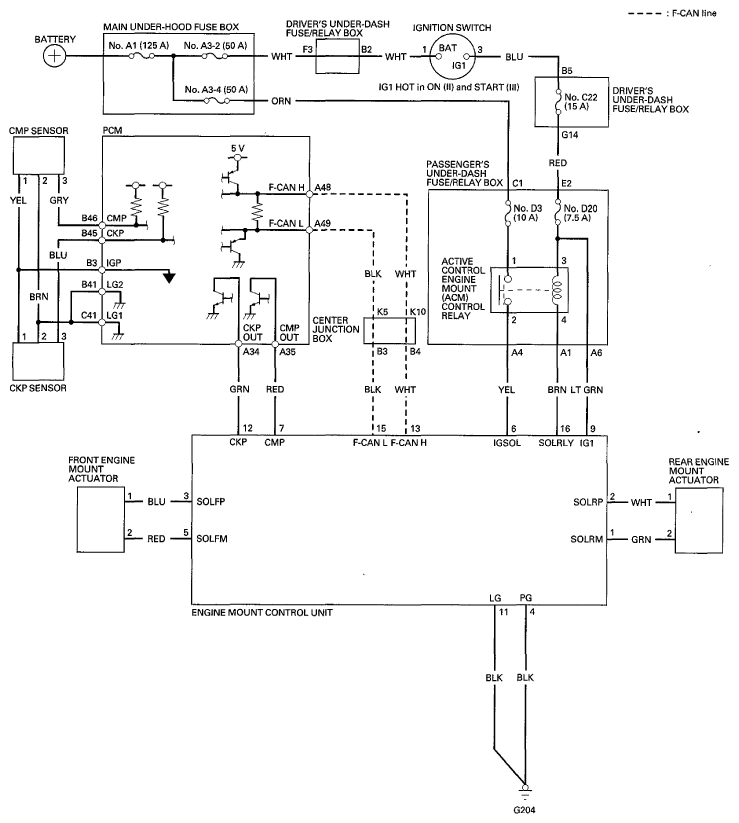

Fig 1: Active Control Engine Mount (ACM) System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
