Keyless Entry Component Views

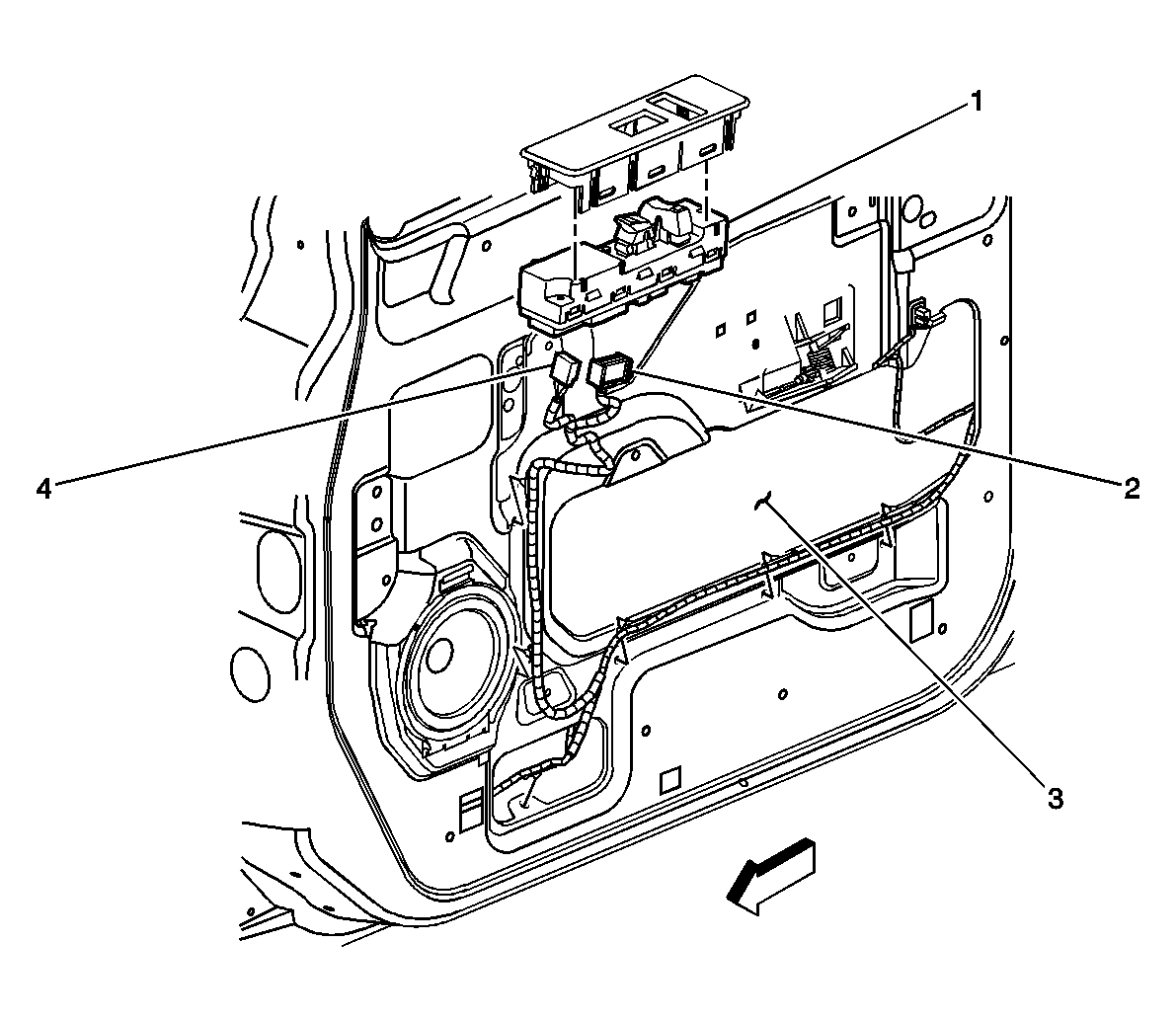

Fig 1: Remote Control Door Lock Receiver (RCDLR)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RCDLR (Part of the Front Passenger Door Module)
2	FPDM-C2
3	Passenger Inner Side Door Panel
4	FPDM-C1
