Installation Procedure

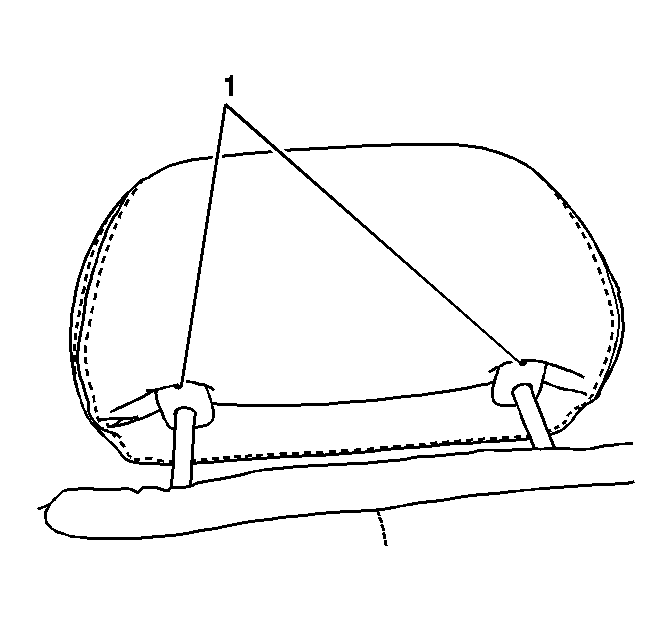

    Fig 1: Head Restraint
    GM867067Courtesy of GENERAL MOTORS CORP.
  1. Install the head restraint by pushing down on restraint until the restraint is fully seated.
  2. To ensure the head restraint is fully seated pull the head restraint up to the full upward position.

    The head restraint must not come off the restraint rod.
