Installation Procedure

  1. Install the power seat adjuster switch assembly to the seat switch bezel.
  2. Install the lumbar support switch to the seat switch bezel.
  3. Connect the electrical connectors.
    NOTE: Refer to Fastener Notice in Cautions and Notices.

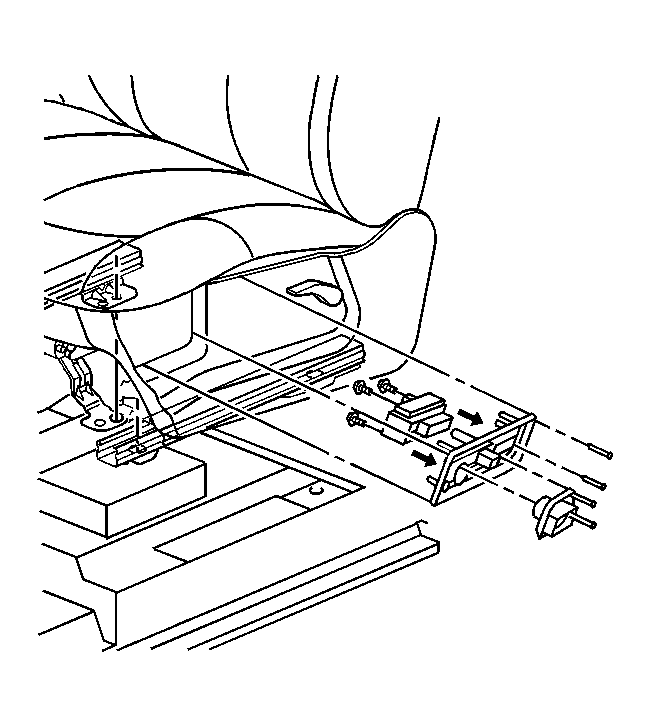

    4. Fig 1: View Of Seat Switch Bezel
    GM389092Courtesy of GENERAL MOTORS CORP.
  4. Install the screws retaining the power seat switch bezel.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).
