Engine Electrical Connector End Views

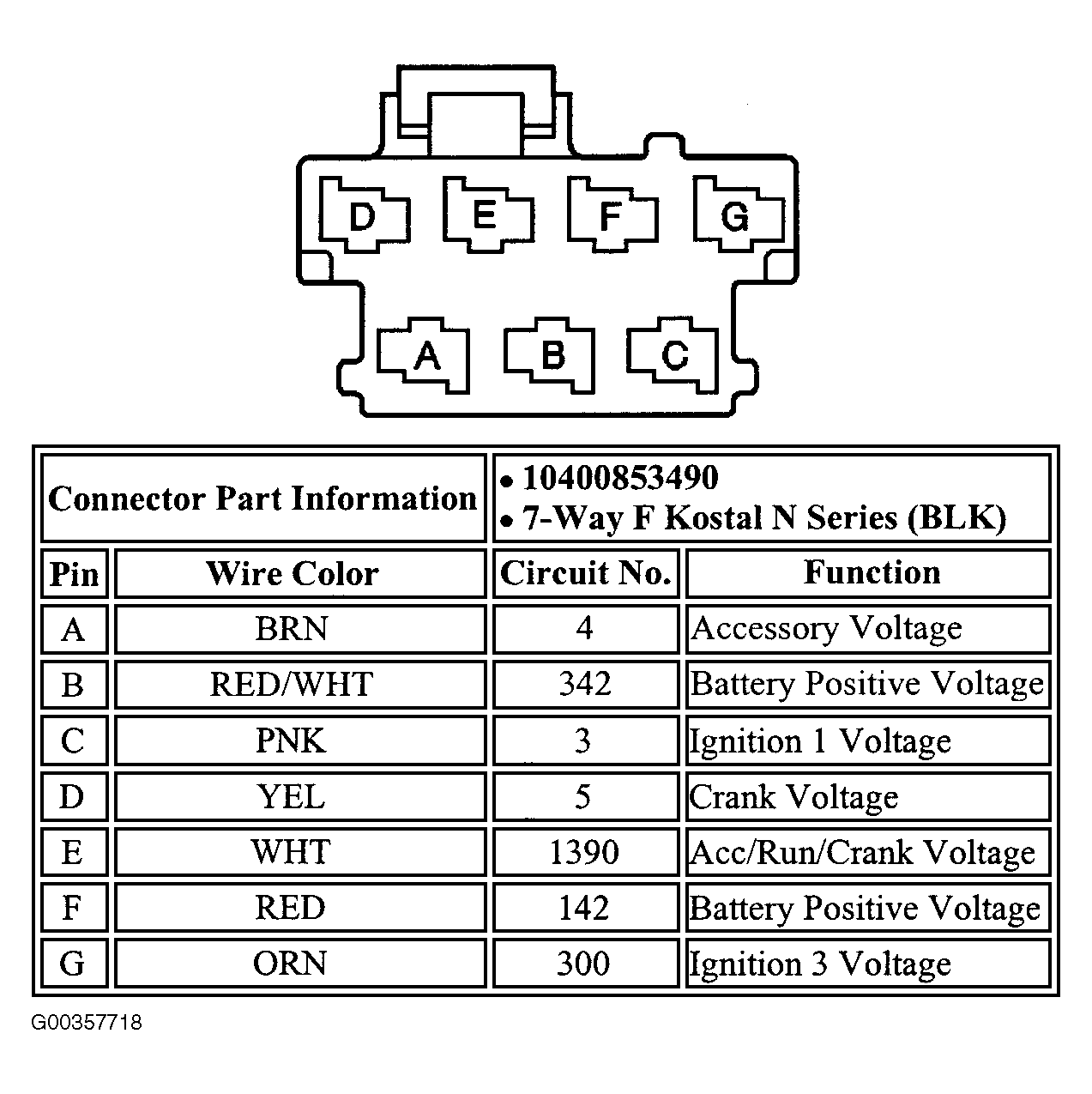

Fig 1: Identifying Ignition Switch Harness Connector Terminals
G00357718Courtesy of GENERAL MOTORS CORP.

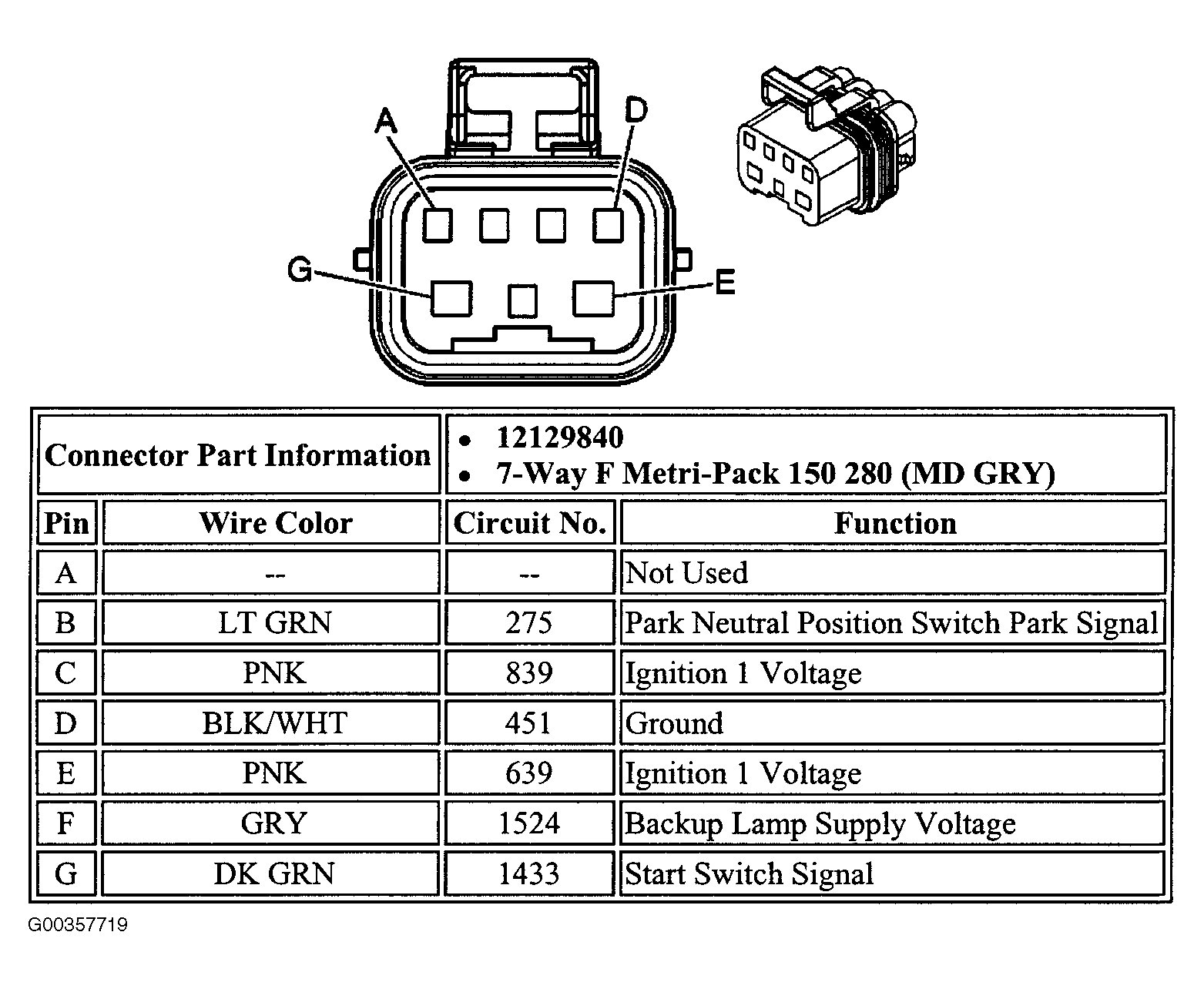

Fig 2: Identifying Park/Neutral Switch Harness Connector Terminals
G00357719Courtesy of GENERAL MOTORS CORP.
