Removal Procedure

  1. Disconnect the battery negative cable from the battery. See BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY) .
  2. Raise and suitably support the vehicle with safety stands.
  3. Remove the engine protection shield.
  4. Remove the forward lamp wiring harness ground/negative cable bolt.
  5. Remove the engine wiring harness ground/negative cable bolt.
  6. Remove the negative battery cable.

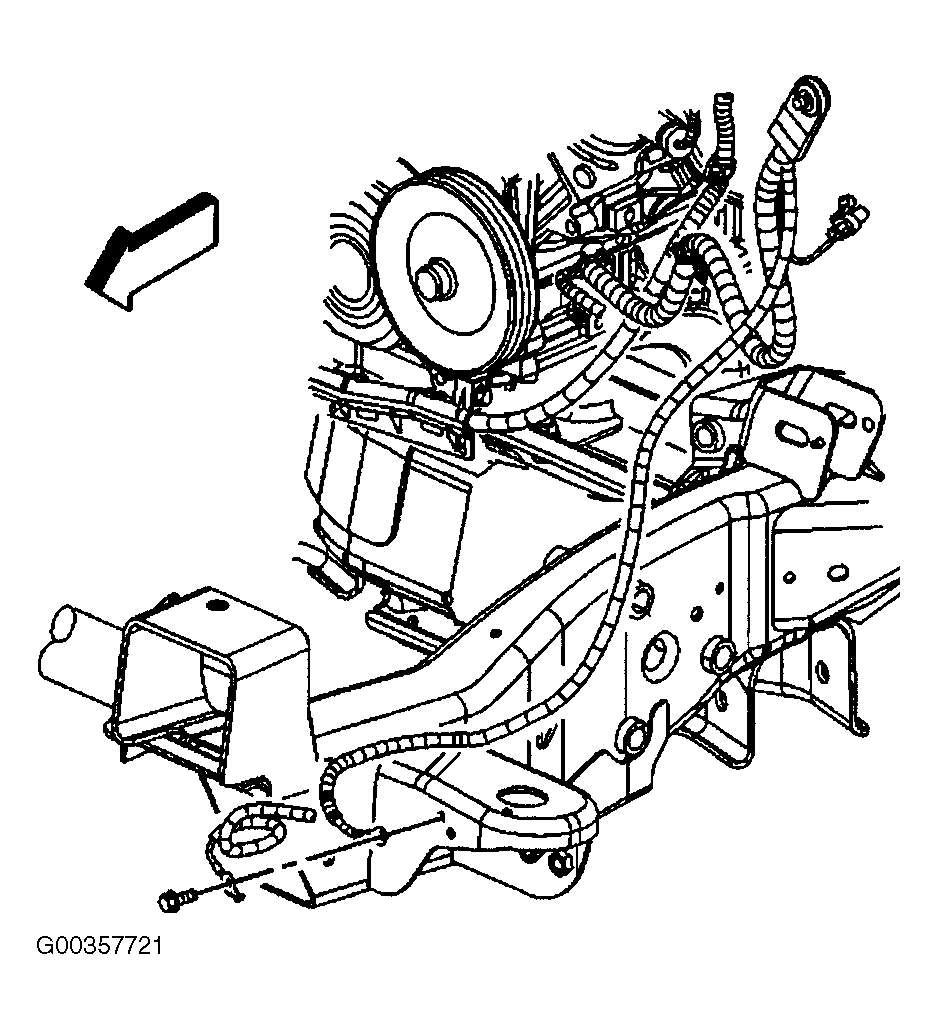

    Fig 1: Locating Negative Battery Cable-To-Engine Connection
    G00357721Courtesy of GENERAL MOTORS CORP.
