Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY) .
  2. Unsnap the positive battery cable cap.
  3. Disconnect the positive battery cable.
  4. Remove the underhood bussed electrical center (UBEC) cover. Position the lower cover to the side.
    5. NOTE: The bolt is integral to the battery cable and is not removable.
  5. Remove the positive battery cable bolt at the UBEC.
  6. Unsnap the junction block cover.
  7. Remove the positive battery cable (1) from the junction block. See Figure.
  8. Raise and suitably support the vehicle with safety stands.
  9. Remove the engine protection shield.
  10. Remove the positive battery cable channel bolt.
  11. Slide the channel pin out of the oil pan tab.
  12. Remove the positive battery cable from the channel.
  13. Remove the positive cable nut
  14. Remove the positive cable from the starter.
  15. Remove the positive cable clip from the clip on the oil pan.
  16. Remove the positive cable from the clip on the oil pan.
  17. Remove the positive battery cable.

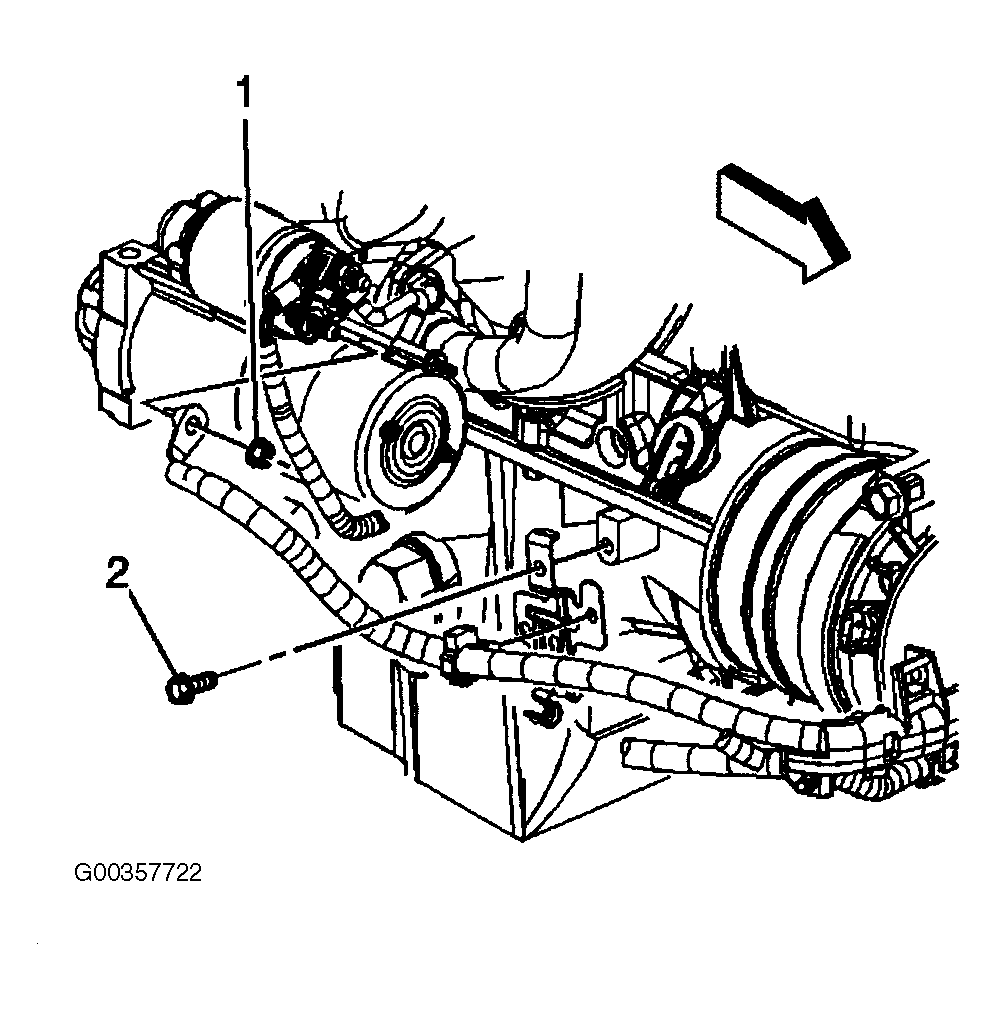

    Fig 1: Identifying Positive Battery Cable-To-Starter Connection
    G00357722Courtesy of GENERAL MOTORS CORP.
