Installation Procedure

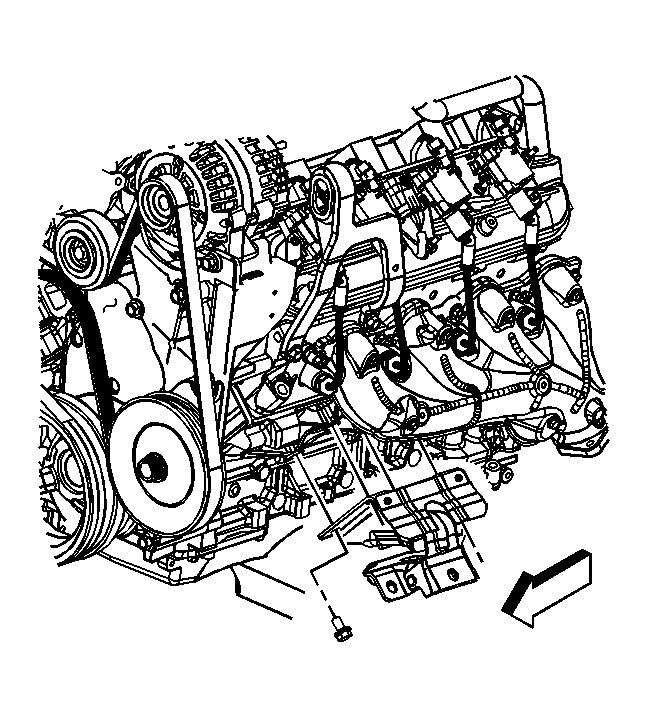

    Fig 1: Engine Mount (Left)
    GM794679Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  1. Position the engine mount to the engine.
  2. Install the engine mount bolts.

    Tighten:  Tighten the engine mount bolts to 50 N.m (37 lb ft).

  3. Lower the engine.
  4. Remove the adjustable jack stands.

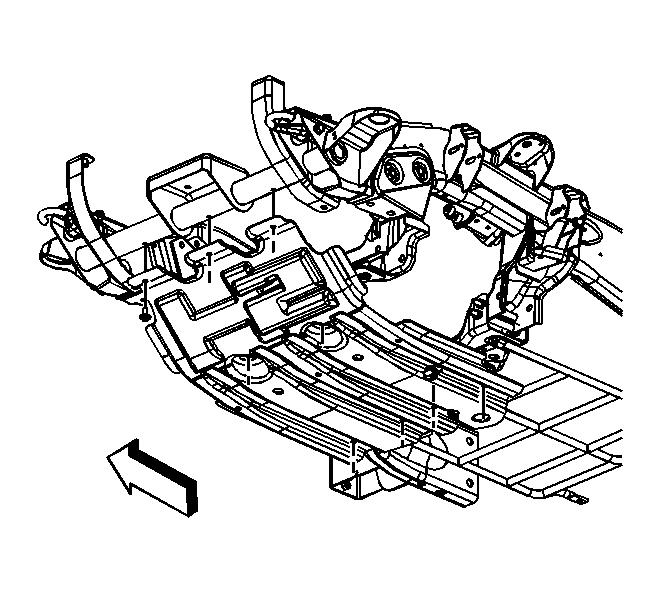

    5. Fig 2: Engine Protection Shield
    GM794711Courtesy of GENERAL MOTORS CORP.
  5. Position the engine shield to the vehicle.
  6. Install the engine shield bolts.

    Tighten:  Tighten the engine shield bolts to 30 N.m (22 lb ft).

  7. Lower the vehicle.

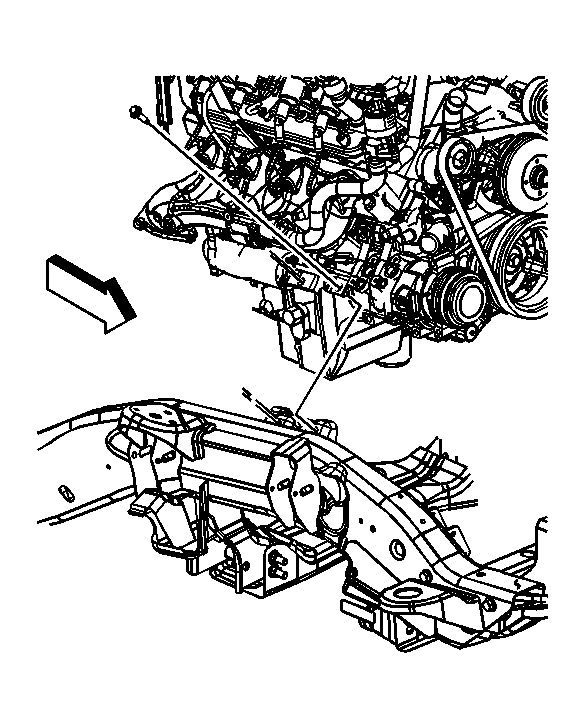

    8. Fig 3: Engine Mount-To-Frame Bracket Bolts (Left)
    GM794678Courtesy of GENERAL MOTORS CORP.
  8. Install the engine mount-to-frame bracket bolts. (Right side shown, left side similar).

    Tighten:  Tighten the engine mount-to-frame bracket bolts to 65 N.m (48 lb ft).
