Power Steering Pump Disassembled View

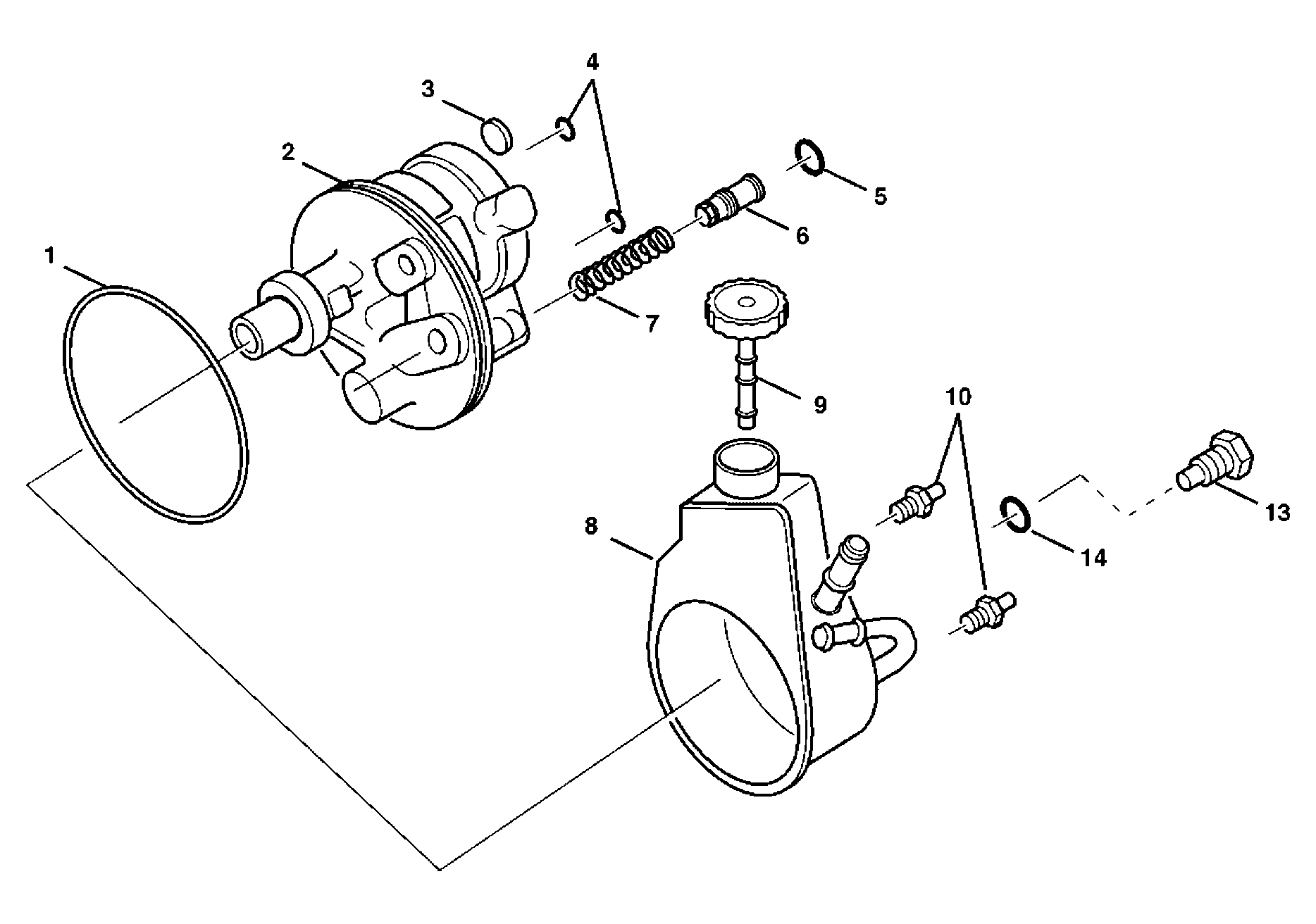

Fig 1: Power Steering Pump Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	O-ring Seal
2	Hydraulic Pump Housing Assembly
3	Magnet
4	O-ring Seals
5	Rectangular Section Seal
6	Control Valve
7	Flow Control Spring
8	Reservoir Assembly
9	Reservoir Capstick
10	Pump Mounting Studs
13	Connector and Fitting Assembly
14	O-ring Seal
