Installation Procedure

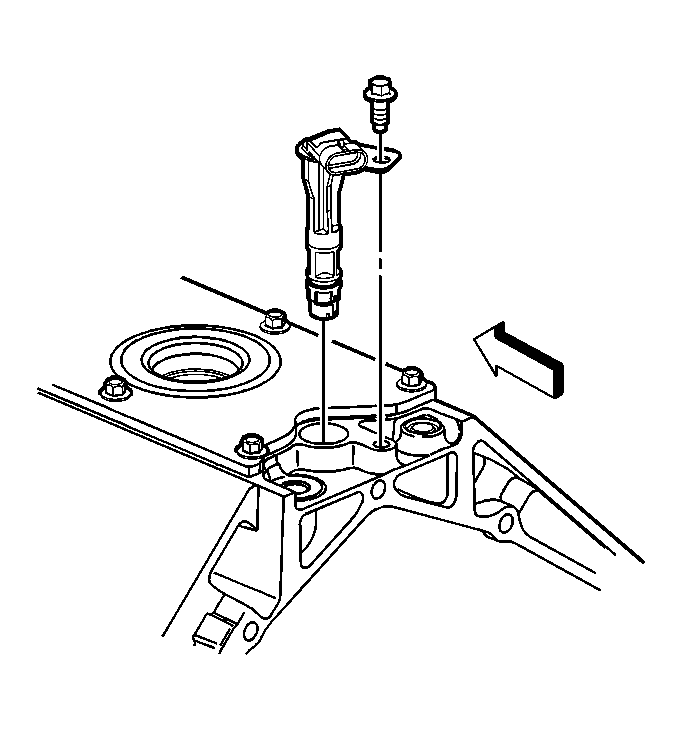

    Fig 1: View Of Camshaft Position (CMP) Sensor & Bolt
    GM260128Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the CMP sensor.
  2. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  3. Connect the CMP sensor electrical connector.
  4. Install the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) in Engine Mechanical 6.0L.
