Installation Procedure

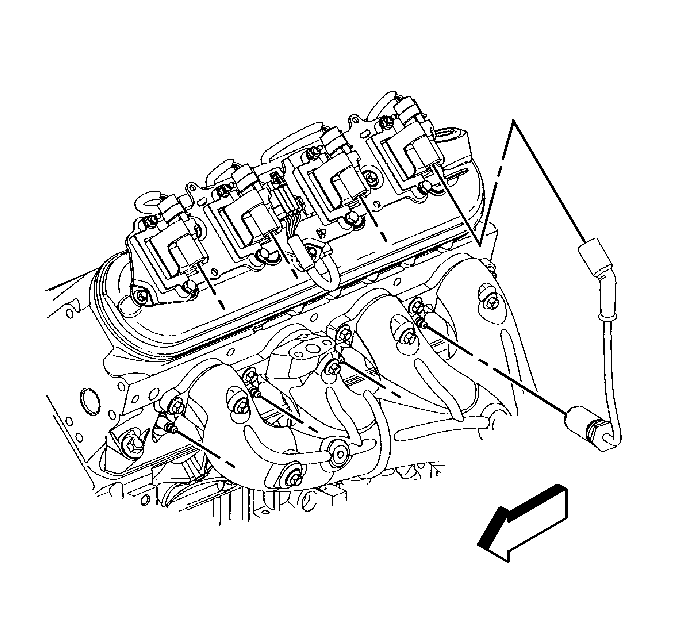

    Fig 1: View Of Spark Plug Wire & Boot
    GM343699Courtesy of GENERAL MOTORS CORP.
  1. Install the spark plug wires at the ignition coil.
  2. Install the spark plug wire to each spark plug.
  3. Inspect the wires for proper installation:
    • Push sideways on each boot in order to inspect the seating.
    • Reinstall any loose boot.
