Spark Plug Wire Length V8

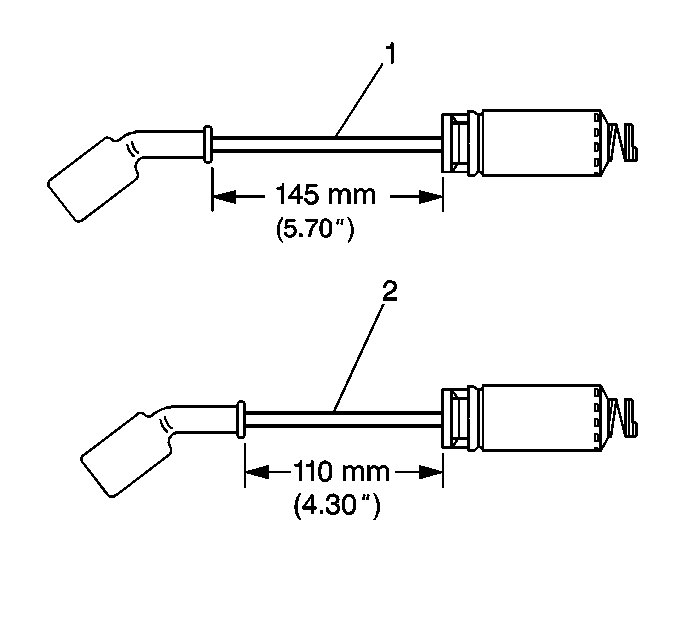

- The Melco®, square design, uses a spark plug wire (1) that is 145 mm (5.70 in) length cable seal to cable seal.
- The Delphi®, round design uses a spark plug wire (2) that is 110 mm (4.30 in) length cable seal to cable seal.

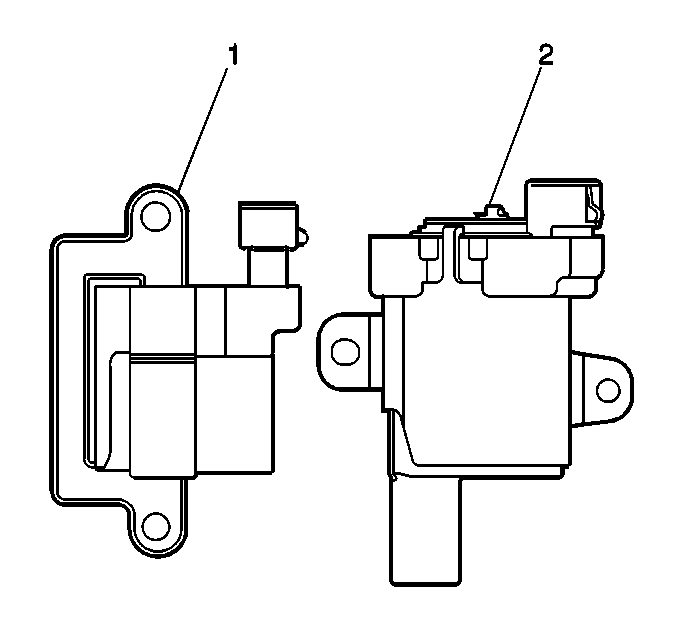

- There are 2 different manufacturers for the ignition coils. The Melco® (1) square design, and the Delphi® (2) round design. These 2 coils use 2 different spark plug wire, and mounting brackets.

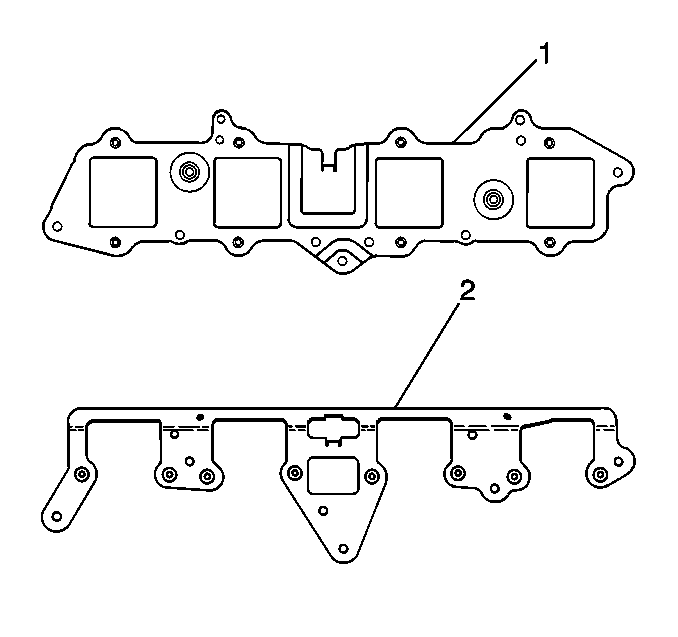

- Melco®, square design, coil mounting bracket (1).
- Delphi®, round design, coil mounting bracket (2).
