Removal Procedure

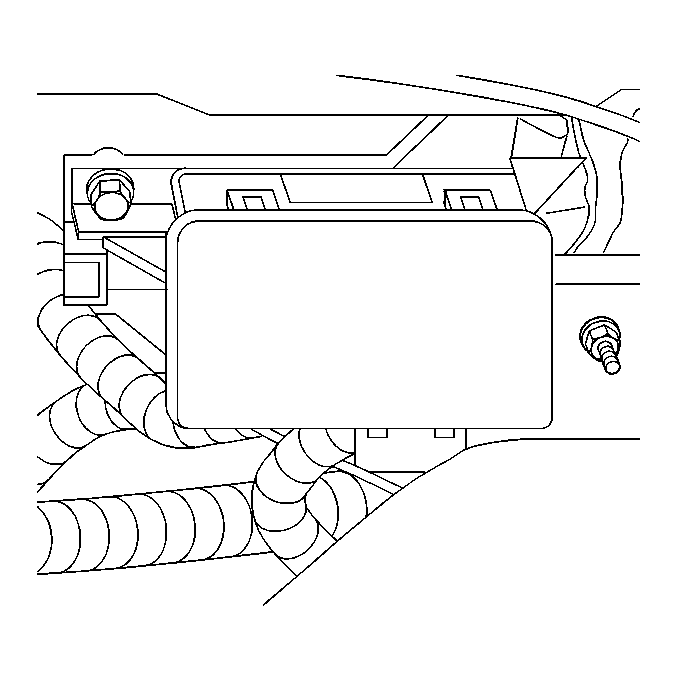

    Fig 1: TAC Module Electrical Connectors
    GM599659Courtesy of GENERAL MOTORS CORP.
  1. Remove the left hand corner brace from the cowl.
  2. Remove the TAC module mounting nuts.
  3. Disconnect the TAC module electrical connectors from the TAC module.
