Installation Procedure

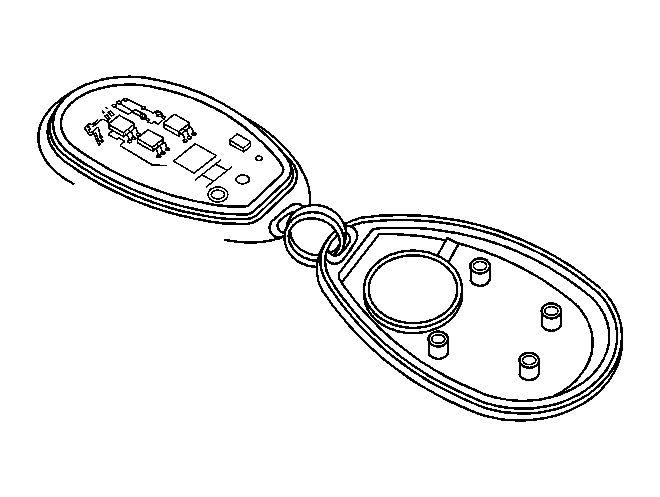

    Fig 1: View Of Transmitter Battery
    GM1334720Courtesy of GENERAL MOTORS CORP.
  1. Install the battery with the positive (+) side down.

    Use one 3-volt, type CR2032 battery or the equivalent.

  2. Ensure that the seal is in position.
  3. Align the two halves of the case together and squeeze the case closed until the tabs are fully seated.
