Remote Function Schematics

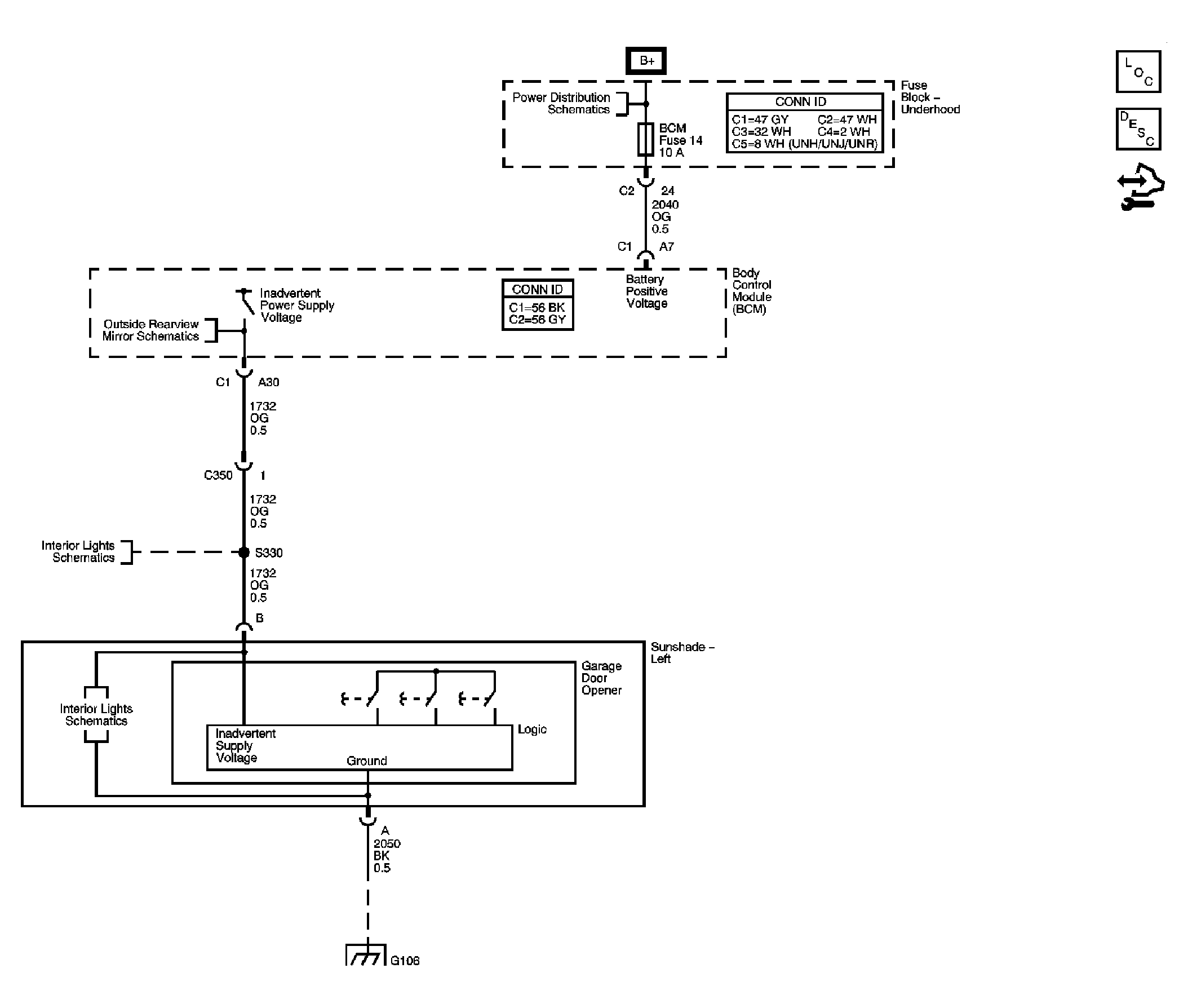

Fig 1: Garage Door Opener Schematic

GM1778128

Courtesy of GENERAL MOTORS CORP.

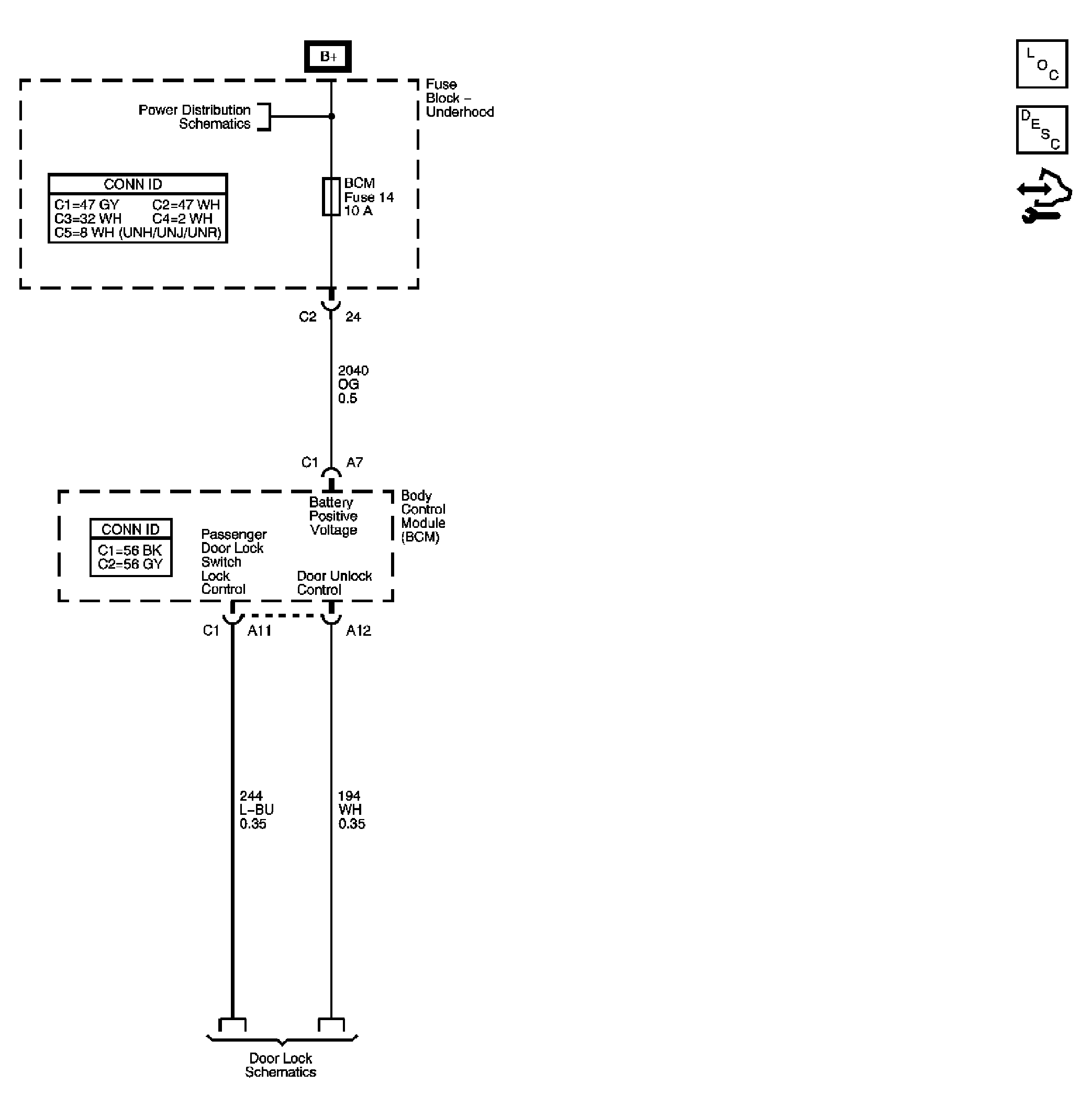

Fig 2: Keyless Entry Schematic

GM1778453

Courtesy of GENERAL MOTORS CORP.
