Installation Procedure

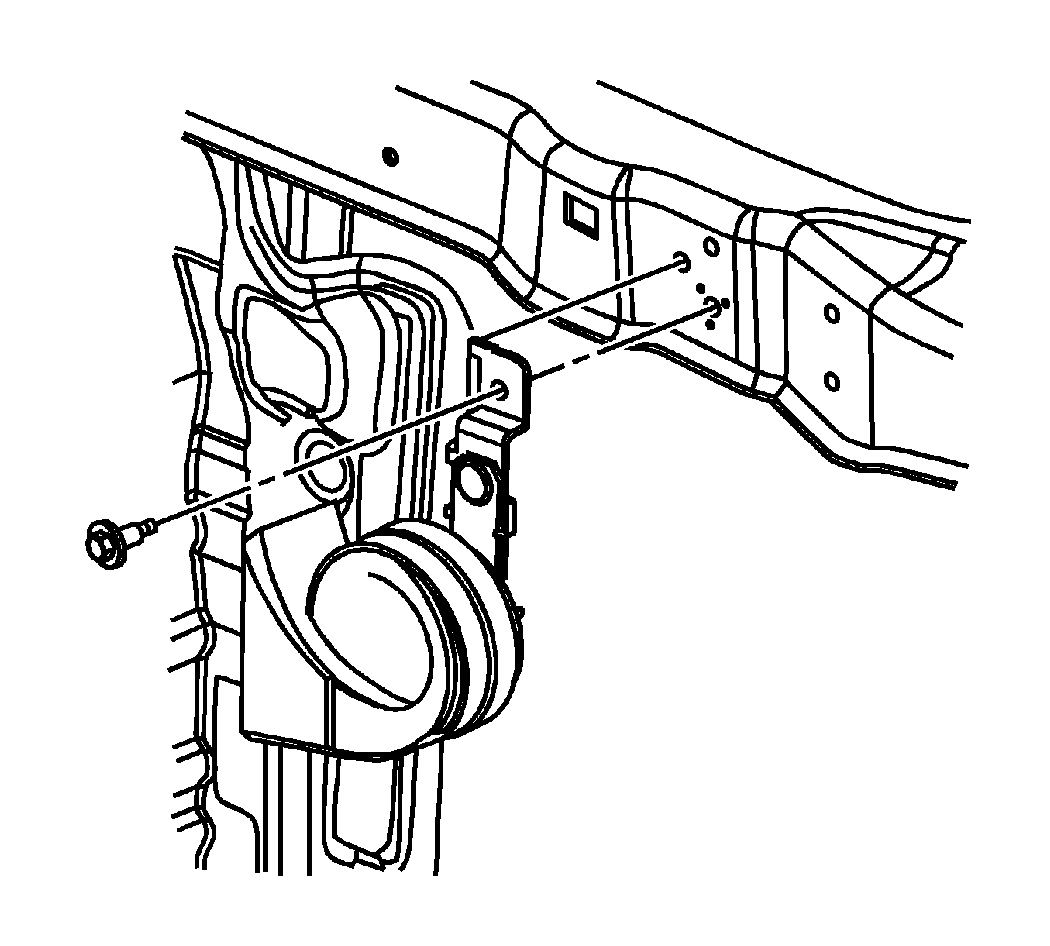

    Fig 1: View Of Horn Assembly
    GM1375741Courtesy of GENERAL MOTORS CORP.
  1. Install the horn assembly to the radiator support.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt that retains the horn assembly to the radiator support.

    Tighten:  Tighten the bolt to 10 N.m (88 lb in).

  3. Connect the horn assembly electrical connector.
  4. Install the grille. Refer to Grille Replacement .
