Fuel Pump Test

Turn ignition off. Apply battery voltage to fuel pump check connector terminal. See Fig 1. Remove fuel tank cap and listen for fuel pump operation. Pinch fuel hoses by hand, and ensure fuel pressure can be felt.

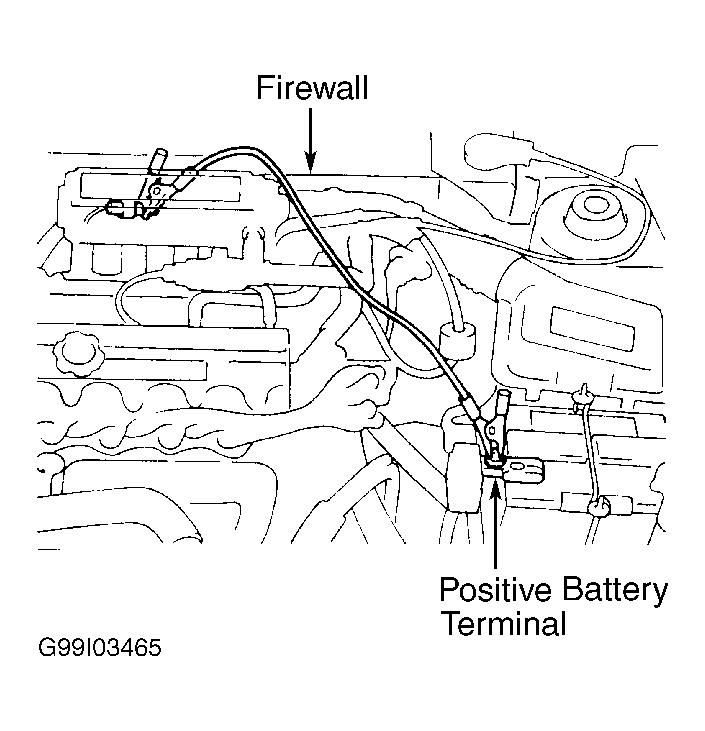

Fig 1: Locating Fuel Pump Check Terminal (Accent Shown; Other Models Are Similar)

Courtesy of HYUNDAI MOTOR CO.
