Brush Replacement
NOTE:
Brushes that are worn out or oil soaked should be replaced.
- Crush worn out brush with pliers, taking care not to damage pigtail.
- Sand pigtail end with sandpaper to ensure good soldering.

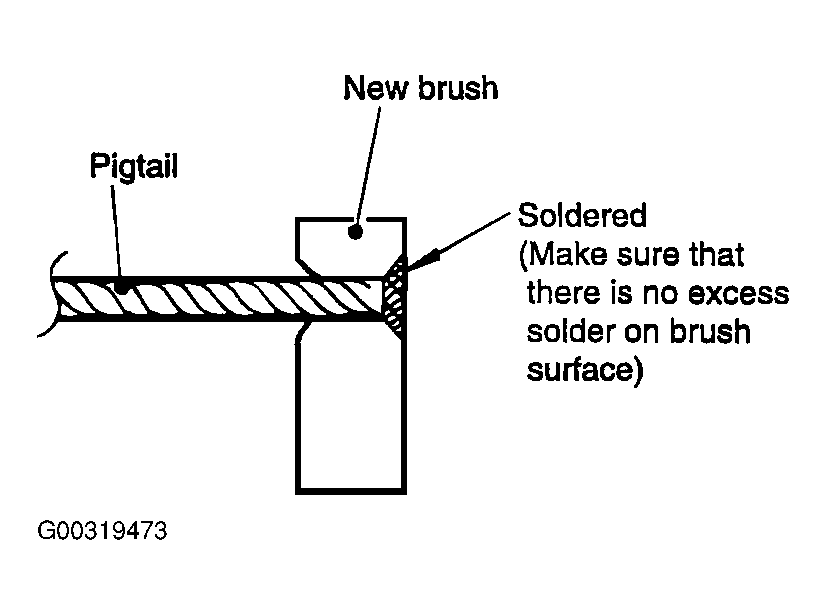

- Insert pigtail into hole provided in the new brush and solder pigtail into position. Ensure that pigtail and excess solder do not come out onto brush surface. See Fig 1 .
- When replacing ground brush, slide brush from brush holder by prying retaining spring back.
