Home >> Hyundai >> 2002 >> XG350 Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle Shift Control >> Components

Automatic Transaxle Shift Control: Components

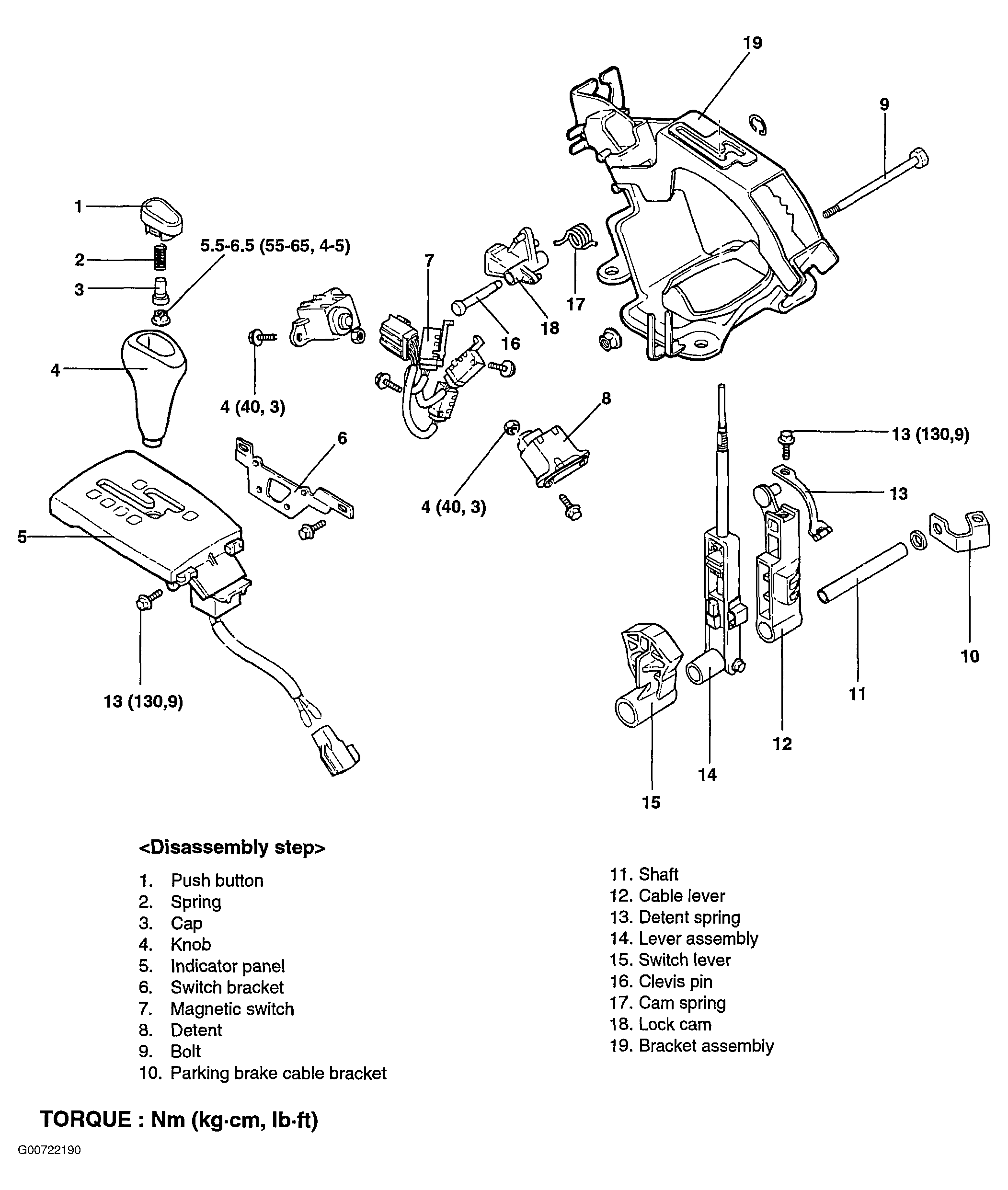

Fig 1: Identifying Shift Control Components

G00722190

Courtesy of HYUNDAI MOTOR CO.
