Hydraulic Pressure Test: Notes

Warm up the engine until the automatic transmission fluid temperature is 80-100°C.
Jack up the vehicle so that the wheels are free to turn.
Connect the special tools (oil pressure gauge) to each pressure discharge port.
Measure the hydraulic pressure at each port under the conditions given in the standard hydraulic pressure table, and check that the measured values are within the standard value ranges.
If a value is outside the standard range, correct the problem while referring to the hydraulic pressure test diagnosis table.

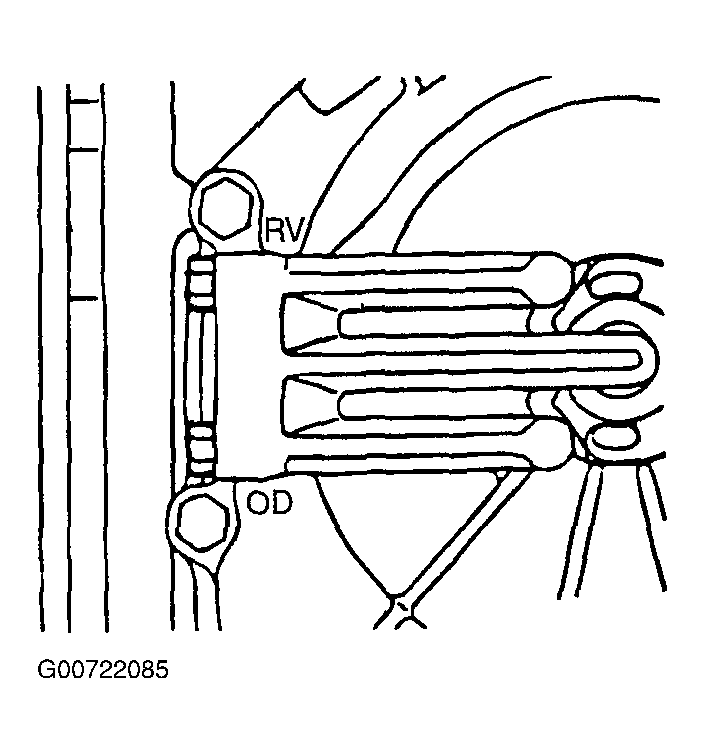

Fig 1: Identifying Oil Pressure Gauge Attaching Locations (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

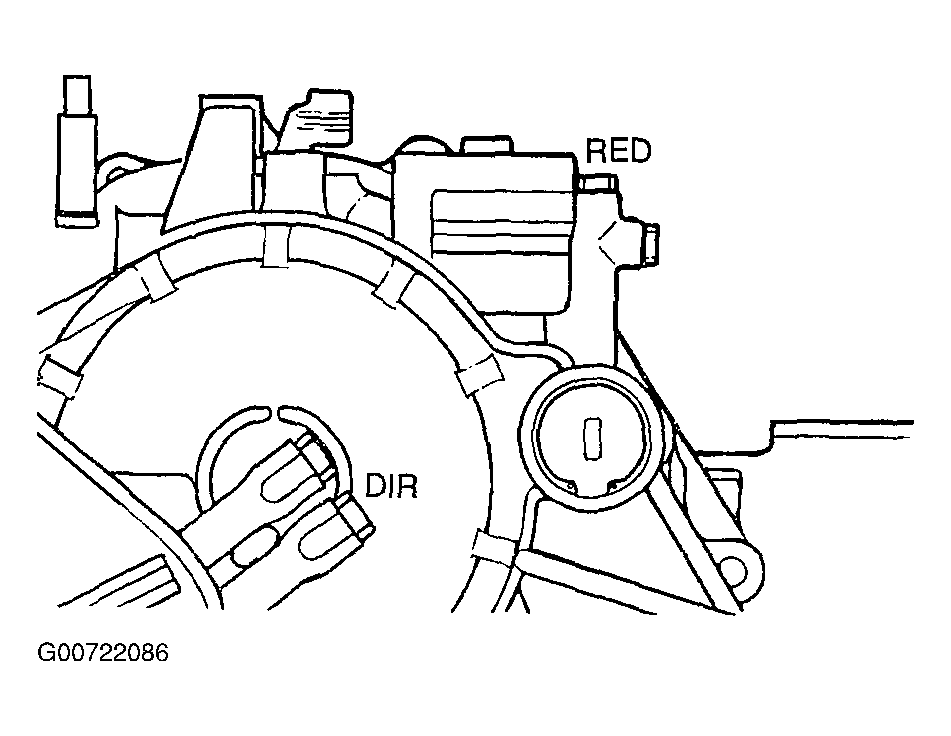

Fig 2: Identifying Oil Pressure Gauge Attaching Locations (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

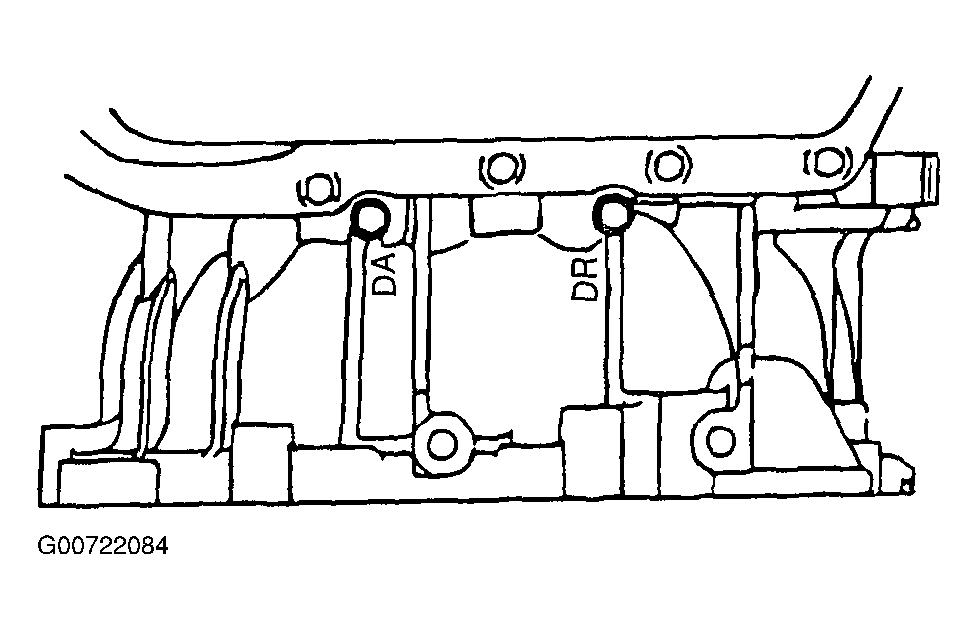

Fig 3: Identifying Oil Pressure Gauge Attaching Locations (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

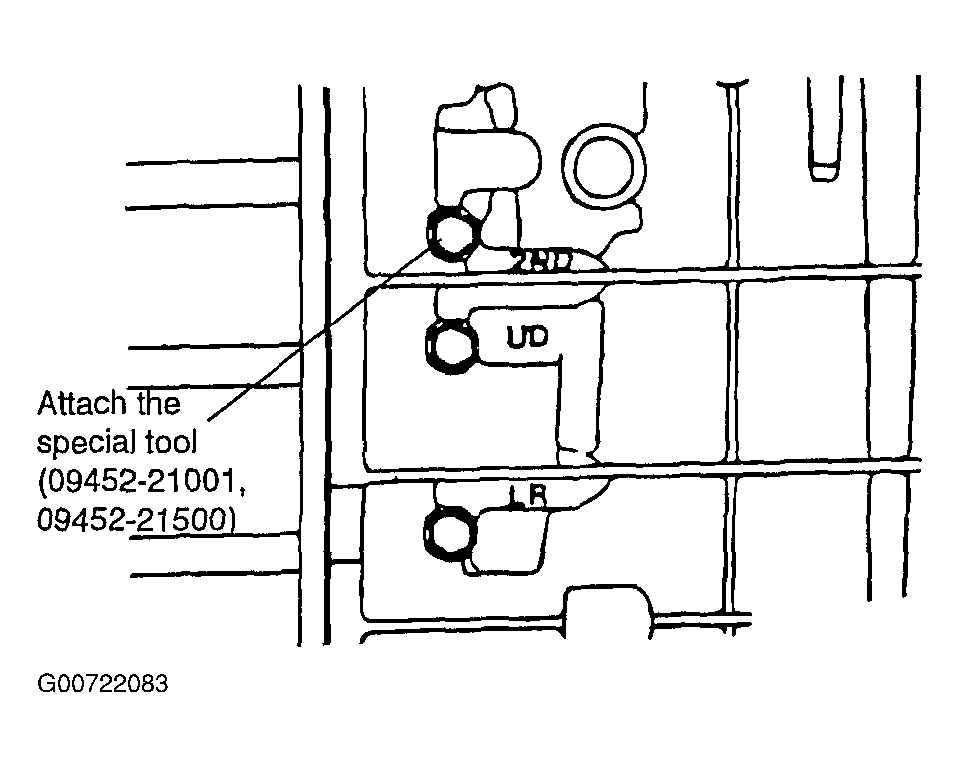

Fig 4: Identifying Oil Pressure Gauge Attaching Locations (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
