Transaxle Range Switch Continuity Check

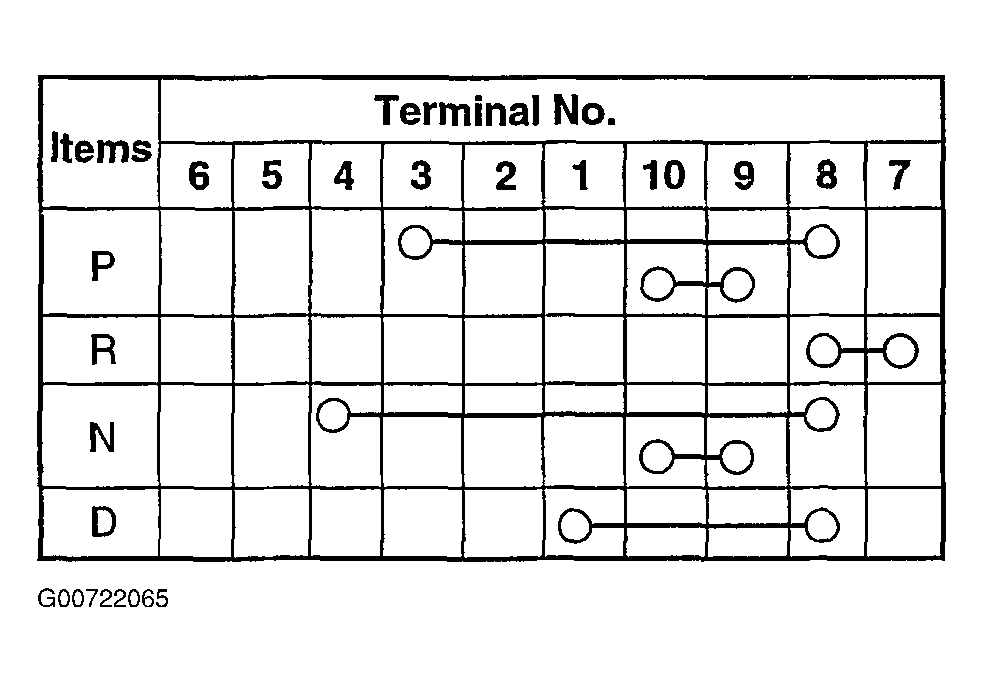

Fig 1: Transaxle Range Switch Continuity Table
G00722065Courtesy of HYUNDAI MOTOR CO.

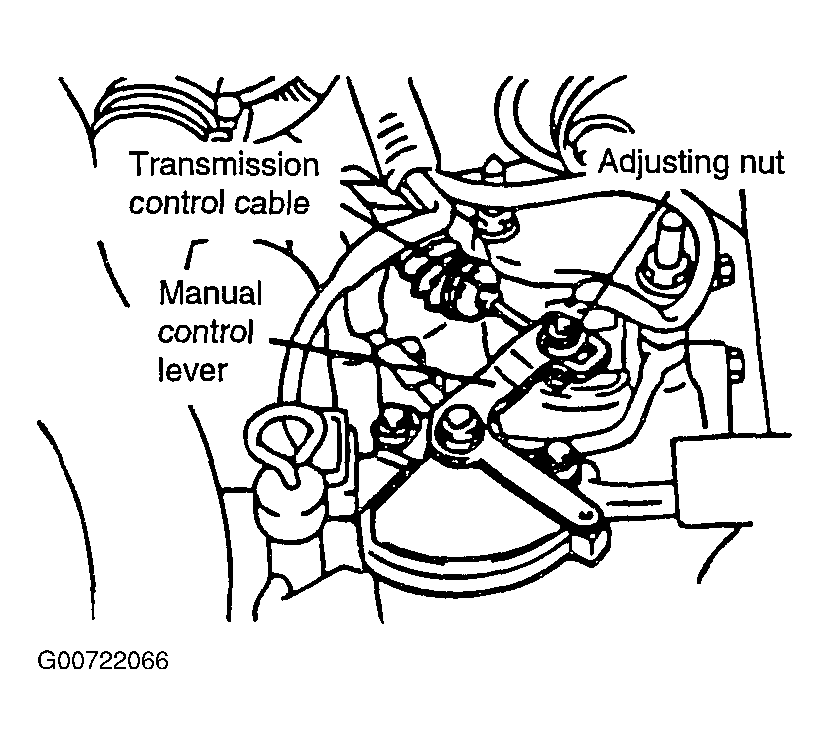

Fig 2: Identifying Transaxle Range Switch Components
G00722066Courtesy of HYUNDAI MOTOR CO.

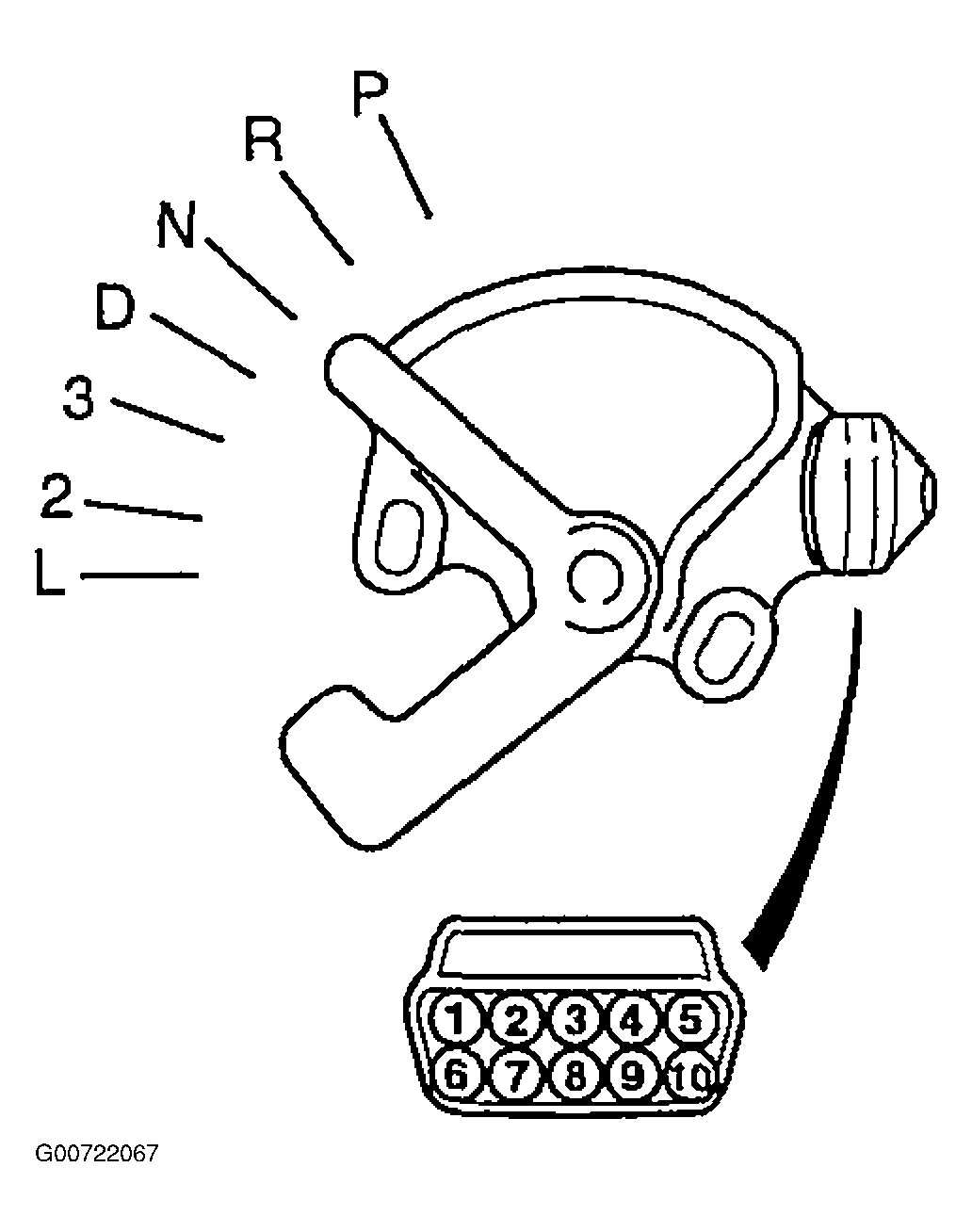

Fig 3: Identifying Transaxle Range Switch Positions & Connector Terminals
G00722067Courtesy of HYUNDAI MOTOR CO.
